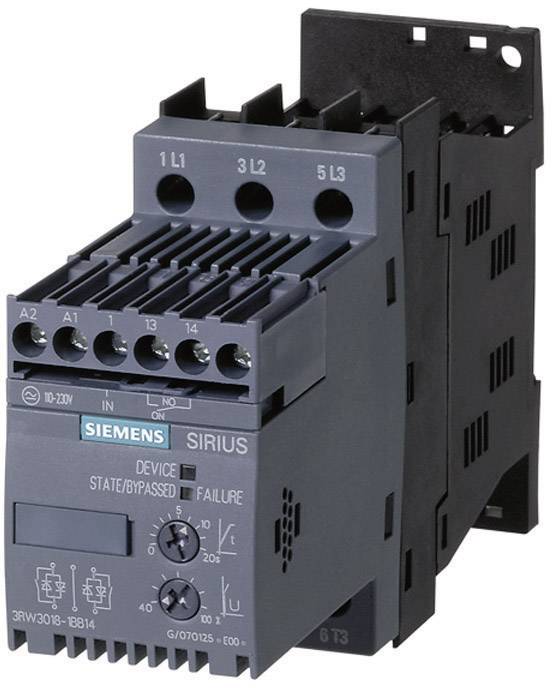

Démarreur progressif Siemens 3RW3016-1BB14 3RW30161BB14 Puissance moteur à 400 V 4.0 kW Puissance moteur à 230 V 2.2 kW
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
5 pièce(s)
Vente et expédition :
franco de port à partir de 100,00 €.- d'achat auprès de ce fournisseur
Nombre
Total
208,50 €
Livraison intracommunautaire (exonérée de TVA)
Livraison gratuite
Plus que 5 pièce(s) en stock !
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques
- Type de produit
Démarreur progressif
- Puissance moteur à 230 V
2.2 kW
- Puissance moteur à 400 V
4.0 kW
- Tension nominale
400 V/AC
- Phases d'activité
2
- Référence fabricant
3RW30161BB14
- Courant nominal
9 A
- Courant nominal - arrondi
9 A
- Type
3RW3016-1BB14
- Dim.
(L x l x H) 93 x 45 x 97.5 mm
- Largeur
45 mm
- Hauteur
97.5 mm
- Longueur
93 mm
- Profondeur
150 mm
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
9 A
2.2 kW
4 kW
40 °C
FAUX
AC/DC
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 197812 Démarreur progressif Siemens 3RW3016-1BB14 3RW30161BB14 Puissance moteur à 400 V 4.0 kW Puissance moteur à 230 V 2.2 kW
Fiche technique 197812 Démarreur progressif Siemens 3RW3016-1BB14 3RW30161BB14 Puissance moteur à 400 V 4.0 kW Puissance moteur à 230 V 2.2 kW
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 197812 Démarreur progressif Siemens 3RW3016-1BB14 3RW30161BB14 Puissance moteur à 400 V 4.0 kW Puissance moteur à 230 V 2.2 kW
Description
SIRIUS soft starter S00 9 A, 4 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
