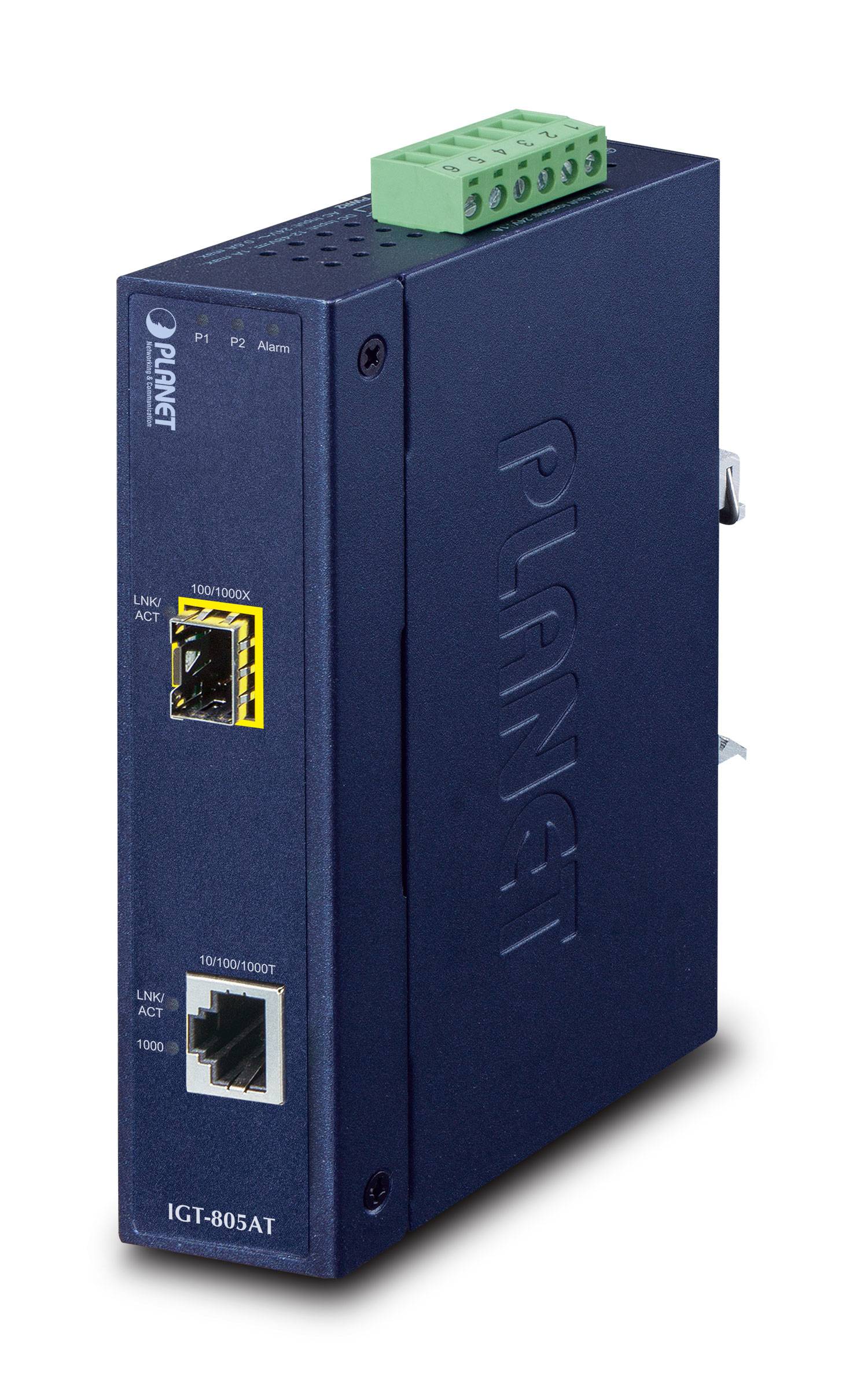

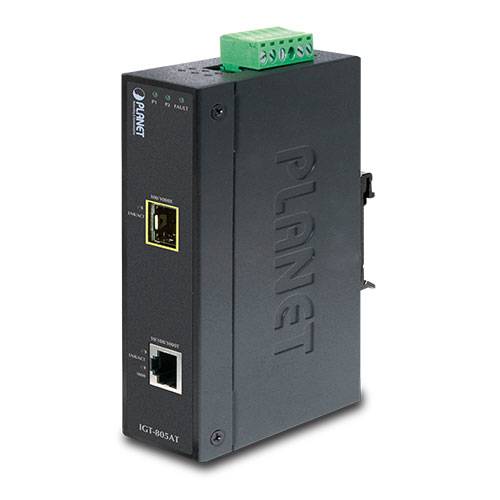

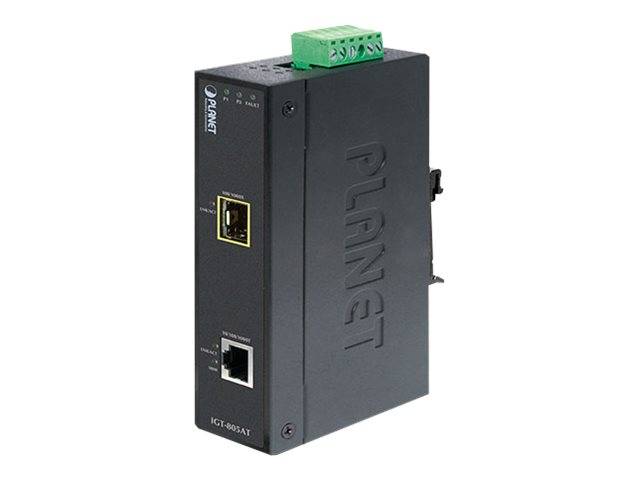

LAN 10/100/1000 Mo/s Planet IGT-805AT Convertisseur de médias 1 GBit/s

1 port 10/100/1000BASE-T RJ45 with Auto MDI /
MDI-X function 1 SFP interface,
100/1000BASE-X mode Dual (détection automatique)   couche
2 caractéristiques IEEE 802.3 /
802.3u / 802.3ab / 802.3z Ethernet Standard compliant
Supports Auto-negotiation and 10/100Mbps half /
full duplex and 1000Mbps full duplex mode Prevent
Packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
9K Jumbo frame size support lfp function support
Automatic address learning and address aging
Industrial Case /
Installation Slim-type IP30 Metal Case DIN Rail
and wall-mount design redondant Power design - 12 à 48 V c.c.,
redondant Power with polarity reverse protect
function - adaptateur AC 24 V Power acceptable supports
EFT protection for 6000 VDC for Power line supports
6000 VDC Ethernet ESD protection -40 to 75 degrees
C operating temperature   Flexible,
Reliable and Industrial-grade Network Distance
Extension Solution PLANET IGT-805AT is an Industrial
Gigabit Media Converter providing non-blocking
wire-speed performance and great flexibility for <>Extension BR/Gigabit Ethernet dans l'environnement industriel harsh.
IT is equipped with one 10/100/1000BASE-T RJ45
Copper and one 100/1000BASE-X SFP fiber optic
interface delivered in an IP30 rugged Strong Case
avec système Power redondant.
The IGT-805AT is well suited for applications
in Deploying Surveillance System,
and Securing Control and Wireless Service in climatically
Demanding environments with wide temperature range
from -40 to 75 degrees C.
With 9K Jumbo frame feature support, the IGT-805AT
can handle extremely large amounts of data transmission
in a secure topology linking to a backbone or
high-Power servers.
   Fiber-Optic Link Capability Enables Extension
of Network Deployment The SFP Slot of the IGT-805AT
is compatible with 100BASE-FX and 1000BASE-SX /
LX / WDM through SFP (Small Form Factor Pluggable)
Fiber-optic Transceivers.
The fiber optic uplink capability guarantees the
throughput to all nodes hooked into the network
and the gigabit ethernet distance can be extended
From 550 meters (multi-mode fiber cable) to 10/20/30/40/50/60/70/120
kilometers (single-mode fiber cable),
and also the fast ethernet distance can be extended
from 2km (multi-mode fiber cable) to 20/40/60
kilometers (single-mode fiber cable).
IT is the Ideal product for applications within
the factory data centers and distributions.
   Amélioration des fonctionnalités de gestion des Smart The IGT-805AT
provides auto MDI/MDI-X on its tp port and built-in
link fault pass-through function (LFP).
The LFP function includes Link Loss Carry Forward
(LLCF) and Link Loss Return (LLR),
both of which can immediately Alarm Administrators
the problem of the link media and provide efficient
solution to monitoring the net.
LLCF means when a device connected to the converter
and the tp line los the link,
the converter’s fiber port will disconnect the
lien de transmission.
llr means when a device connected to the converter
and the fiber line los the link,
the converter’s fiber port will disconnect the
lien de transmission.
Therefore, the IGT-805AT greatly supports the
administrators to manage the network efficiently.
   Environmentally Hardened Design The IGT-805AT
is equipped with the Slim-type IP30 Metal Case
for easy deployment in heavy industrial demanding environments.
With IP30 Industrial Case Protection, the IGT-805AT
provides a high level of immunity against electromagnetic
interference and heavy electrical surges which
are usually found on plant floors or in curbside
traffic control cabinets.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGT-805AT can be placed in almost any difficult environment.
The IGT-805AT Also allows either DIN rail or wall
mounting for efficient use of cabinet space.
   Convenient and Reliable Power system to enhance
the operation reliability and flexibility,
the IGT-805AT is equipped with two DC Power input
connecteurs pour l'installation d'approvisionnement Power redondant.
IT also possesses an integrated Power supply source
with wide-ranging voltages (12 to 48V c.c. or 24V
c.a.) for Worldwide High Availability Applications
requiring Dual or backup Power inputs.
