Siemens 3RT2026-1AP00 Contacteur 3 NO (T) 11 kW 230 V/AC 25 A avec contact auxiliaire 1 pc(s)
EAN :
Ref. fabricant :
Code produit :
Type de produit
Contacteur
Nombre de pôles
3 pôles
Tension nominale
230 V/AC
Courant de charge
25 A
Puissance
11 kW
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
71,66 €
3
3% = 1,98 €
69,68 €
5
4% = 2,78 €
68,88 €
10
5% = 3,31 €
68,35 €
25
5% = 3,91 €
67,75 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (71,66 € / unité(s))
71,66 €
HT
dont 0,06 € d’éco-part
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
La sélection optimale pour la quantité saisie est calculée automatiquement, incluant le prix (hors frais d'envoi) et le délai de livraison.
Caractéristiques techniques
- Poids : 411 g
- Puissance dissipée : 1.6 W
- Type de produit
Contacteur
- Type
3RT2026-1AP00
- Dimensions
S0
- Nombre de pôles
3 pôles

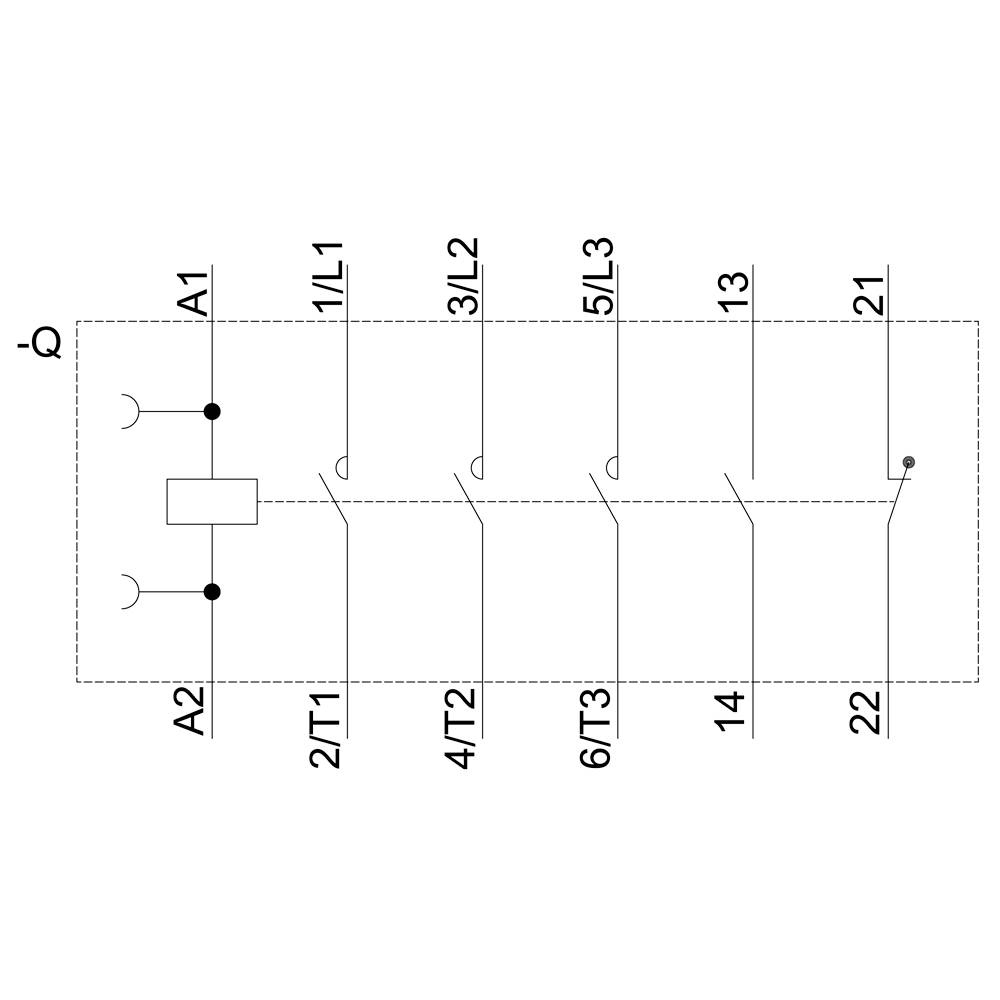

- Type de contact
3 NO (T)
- Type de contact auxiliaire
1 NO (T)
1 NF (R)
- Tension nominale
230 V/AC
- Tension de contact (max.)
400 V/AC
- Courant de charge
25 A
11 kW
- Spécificités
avec contact auxiliaire
- Type de montage
pour profilé
- Connexion
borne à vis
- Durée de vie mécanique
1 0E7
IP20
- Température min.
-25 °C
- Température max.
+60 °C

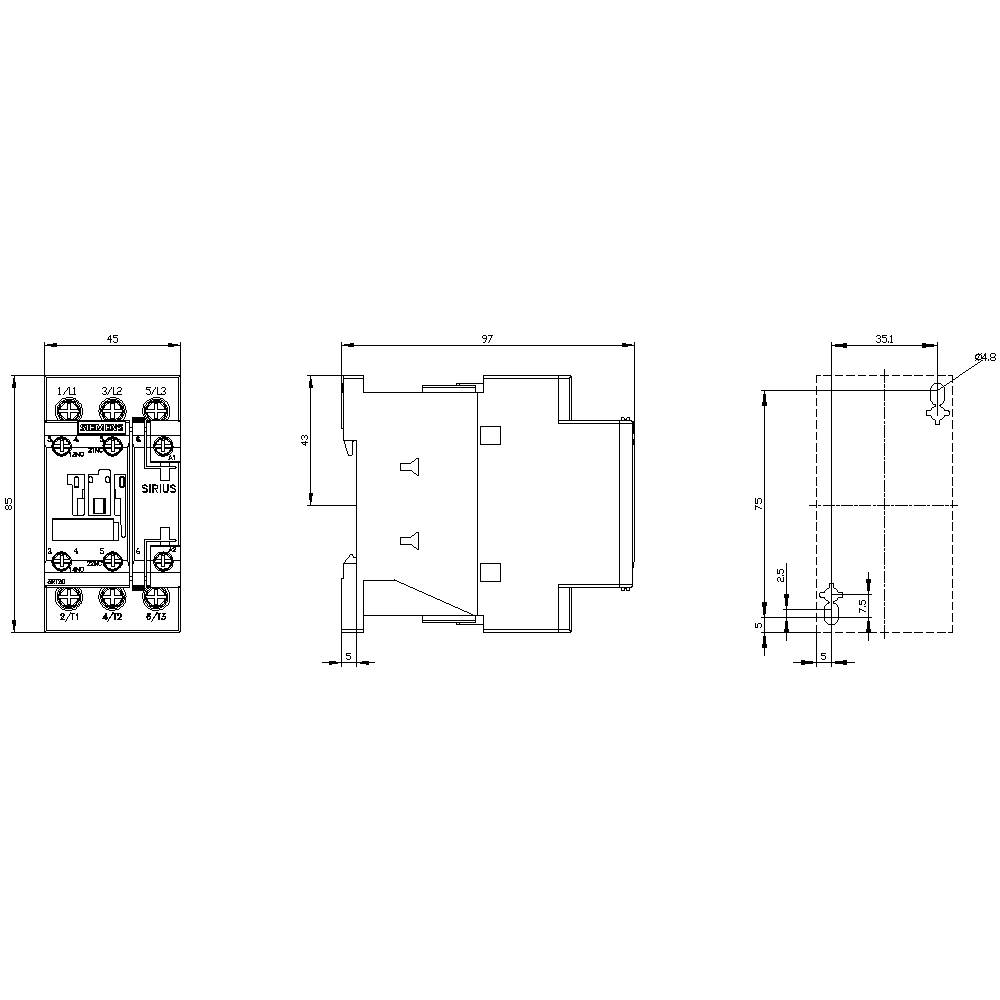

- Largeur
45 mm
- Hauteur
85 mm
- Profondeur
97 mm
- Dim.
(l x H x P) 45 x 85 x 97 mm
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
- Poids
0.41
VRAI
11 kW
3
1
1
25 A
40 A
Screw connection
AC
15.5 A
11.03248125
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1431063 Siemens 3RT2026-1AP00 Contacteur 3 NO (T) 11 kW 230 V/AC 25 A avec contact auxiliaire 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1431063 Siemens 3RT2026-1AP00 Contacteur 3 NO (T) 11 kW 230 V/AC 25 A avec contact auxiliaire 1 pc(s)
Description
power contactor, AC-3 25 A, 11 kW / 400 V 1 NO + 1 NC, 230 V AC, 50 Hz, 3-pole, Size S0 screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

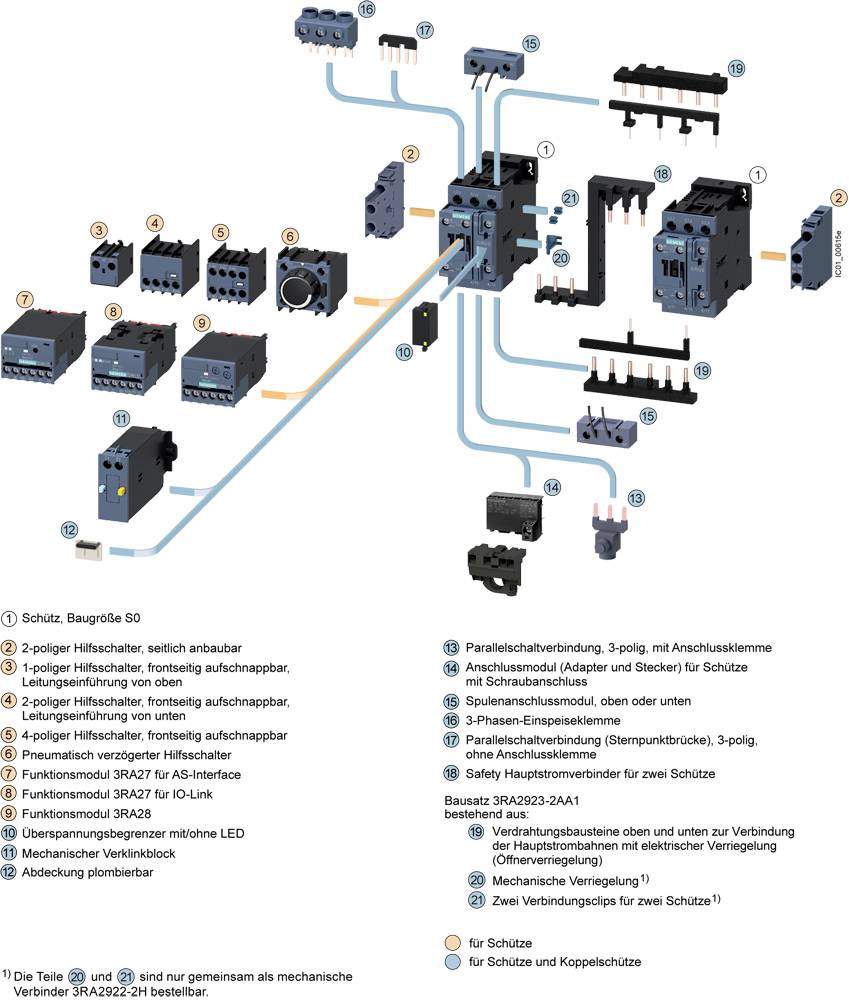

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
