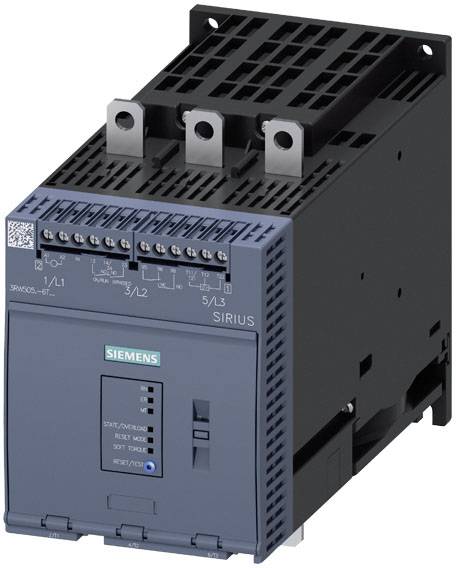

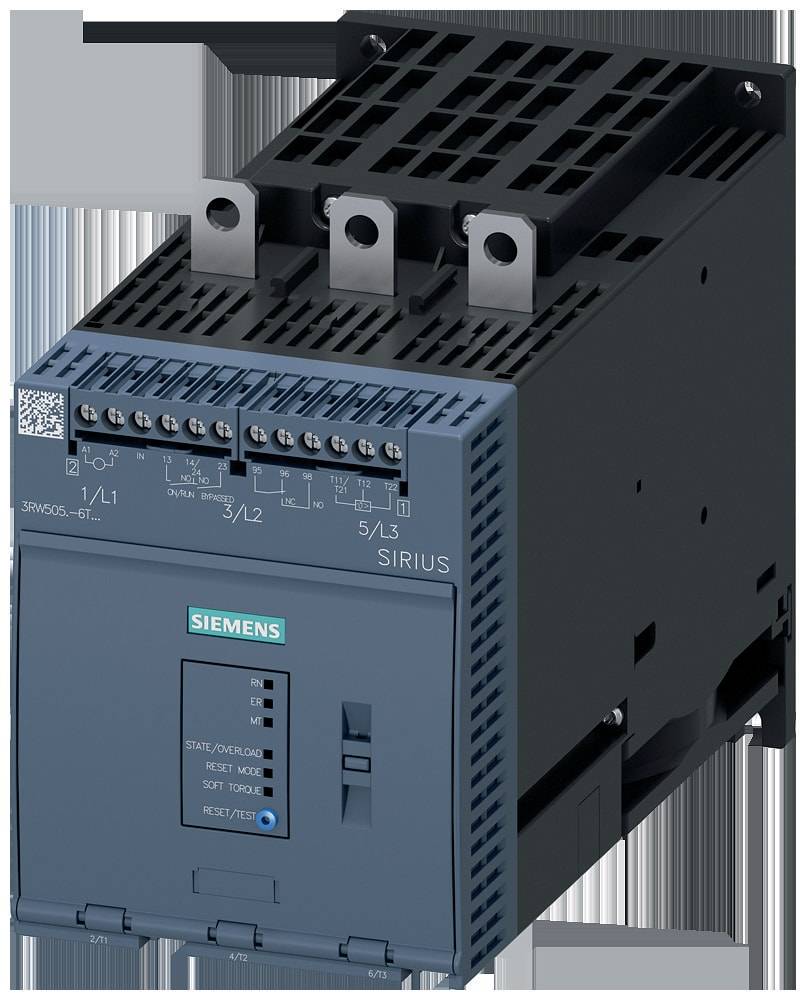

Siemens 3RW5055-6TB15 3RW50556TB15 Démarreur progressif Puissance moteur à 400 V 75 kW Puissance moteur à 230 V 37 kW 20
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
Total (1 954,17 € / unité(s))
1 954,17 €
HT
dont 1,75 € d’éco-part
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Nombre d'entrées numériques : 1
- Type de protection moteur : électronique, déclenchement en cas de surcharge thermique du moteur
- Type de fixation : fixation par vis
- Fréquence de fonctionnement : 50/60 Hz
- Tension d'isolation : 600 V.
- Indice de protection : IP00

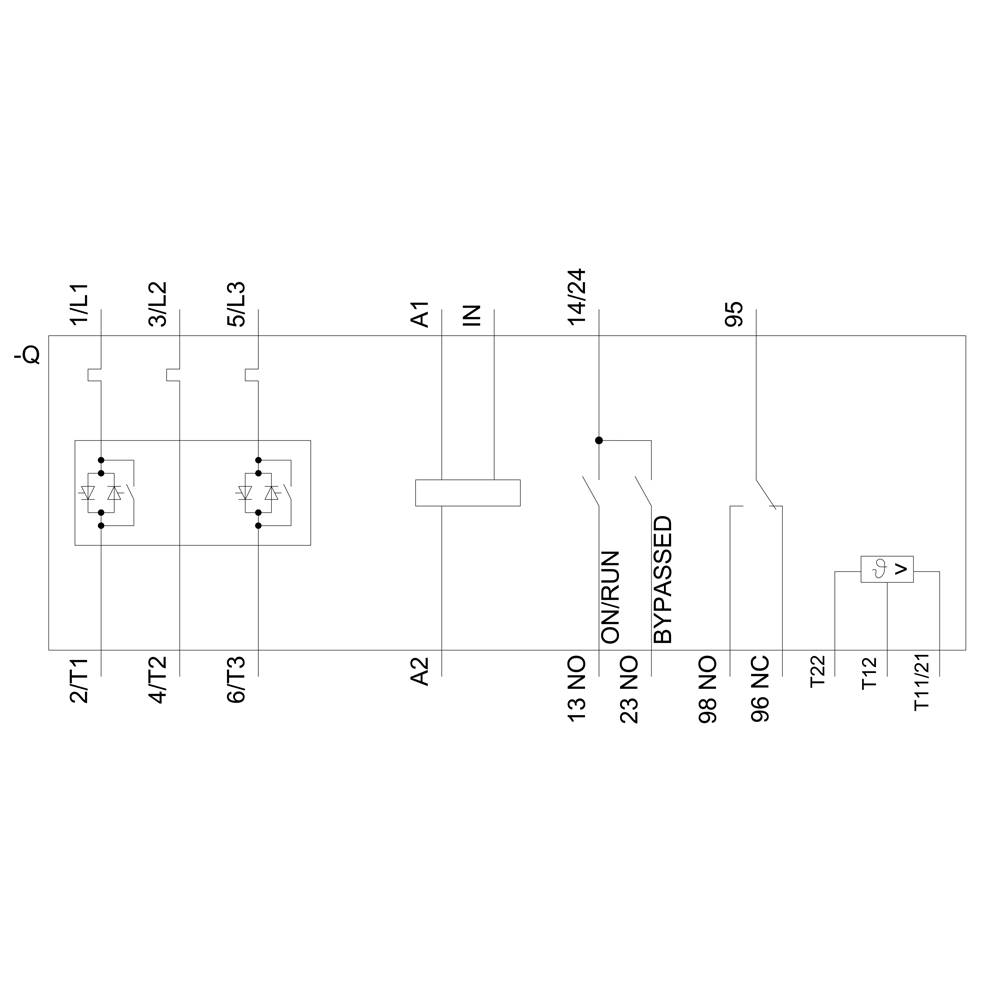

- Type de sortie numérique : 2 contacts NO / 1 contact inverseur (CO)
- Taille du démarreur progressif : S6
- Type de produit
Démarreur progressif
- Puissance moteur à 230 V
37 kW
- Puissance moteur à 400 V
75 kW
- Tension nominale
200 V
600 V
- Modèle
Variante de produit : AC 110-250 V.
- Référence fabricant
3RW50556TB15
- Courant nominal
143 A
- Courant nominal - arrondi
143 A
- Type
3RW5055-6TB15
- Temps d’arrêt
20 s

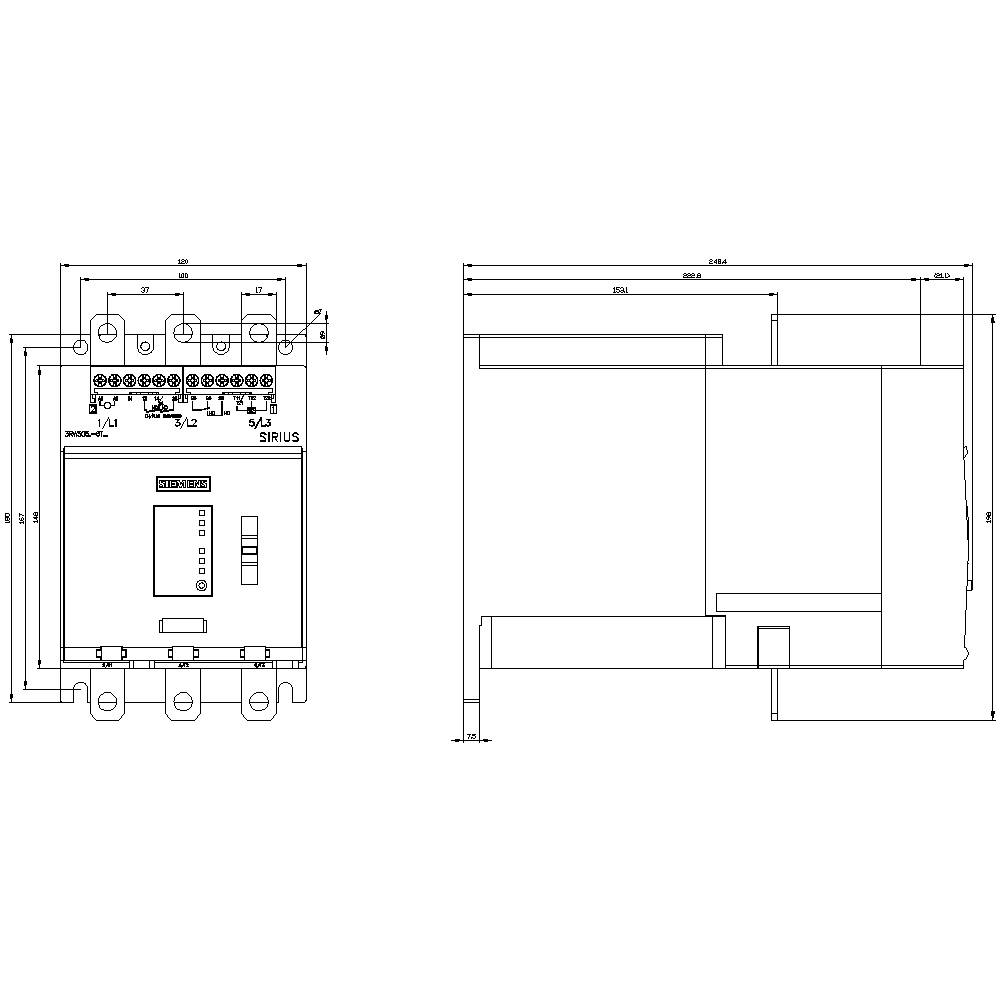

- Dim.
(l x H x P) 120 x 198 x 249 mm
- Connexion
borne à vis
- Largeur
120 mm
- Hauteur
198 mm
- Profondeur
249 mm
- Température max.
+60 °C
- Température min.
-25 °C
Single direction
IP00
Adjustable
143 A
37 kW
75 kW
40 °C
VRAI
AC
VRAI
FAUX
- UKCA
non pertinent
Documents et téléchargements
Fiche technique
Fiche technique 2262705 Siemens 3RW5055-6TB15 3RW50556TB15 Démarreur progressif Puissance moteur à 400 V 75 kW Puissance moteur à 230 V 37 kW 20
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 2262705 Siemens 3RW5055-6TB15 3RW50556TB15 Démarreur progressif Puissance moteur à 400 V 75 kW Puissance moteur à 230 V 37 kW 20
Description
SIRIUS soft starter 200-600 V 143 A, 110-250 V AC Screw terminals Thermistor input Soft starter SIRIUS 3RW50 Basic Performance for simple applications for soft starting and stopping of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. The innovative Soft Torque function ensures that the motor is started gently. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The Basic Performance 3RW50 soft starters are available for supply systems up to 600 V in a performance range up to 315 kW with 24 V or 110-250 V control supply voltages and all with both screw and spring-type terminals. Different device versions are available for analog output and thermistor motor protection.

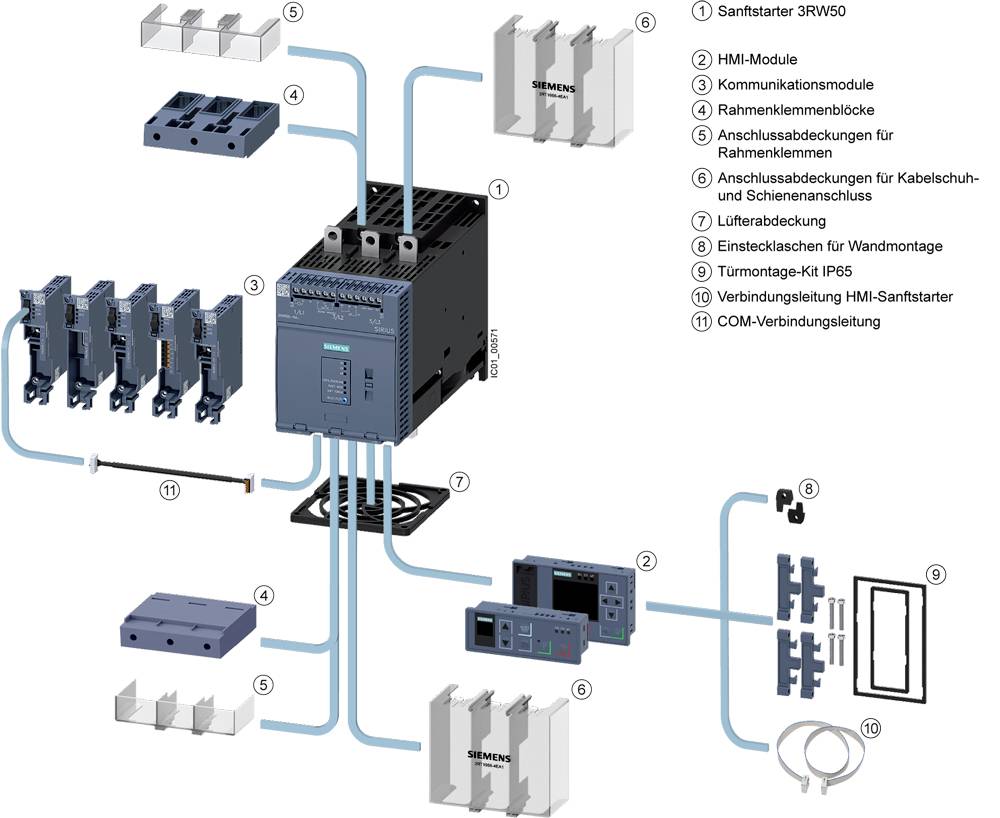

Optional communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the control cabinet door.
The 3RW50 soft starters replace the tried and tested 3RW40 series (size S6 to S12).
SIRIUS 3RW5 soft starters - As flexible as your tasks.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. The innovative Soft Torque function ensures that the motor is started gently. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The Basic Performance 3RW50 soft starters are available for supply systems up to 600 V in a performance range up to 315 kW with 24 V or 110-250 V control supply voltages and all with both screw and spring-type terminals. Different device versions are available for analog output and thermistor motor protection.
Optional communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the control cabinet door.
The 3RW50 soft starters replace the tried and tested 3RW40 series (size S6 to S12).
SIRIUS 3RW5 soft starters - As flexible as your tasks.
