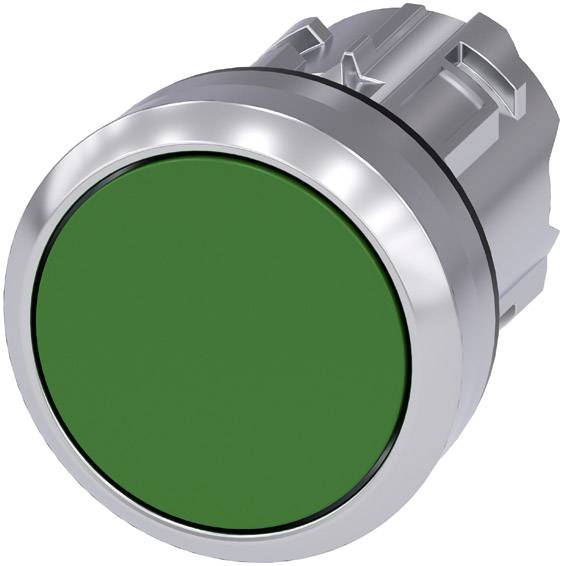

Siemens 3SU10500AB400AA0 3SU1050-0AB40-0AA0 Bouton-poussoir collerette métal, finition brillante, actionneur plat bouton
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
6 pièce(s)
Vente et expédition :
franco de port à partir de 100,00 €.- d'achat auprès de ce fournisseur
Nombre
Total
5,00 €
Livraison intracommunautaire (exonérée de TVA)
9,16 €
Plus que 6 pièce(s) en stock !
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques
- Bouton-poussoir, 22 mm, rond, métal, brillant, vert, bouton-poussoir, bouton-poussoir plat
- Type d'emballage
Piece
- Type de produit
Bouton-poussoir
- Spécificités
collerette métal
finition brillante
actionneur plat
- Type d'éclairage
sans
- Type d'actionnement
bouton
- Couleur
vert
- Couleur boîtier
vert
- Motif d'impression
sans
- Connexion
élément de contact externe
- Forme
rond
- Fonctions
à rappel
- Durée de vie mécanique
10000000
- Ø de montage
22 mm
IP66
IP67
IP69K
- Température min.
-25 °C
- Température max.
+70 °C
- Largeur
29.5 mm
- Hauteur
29.5 mm
- Diamètre
22 mm
- Contenu
1 pc(s)
- Dim.
(Ø x H) 22 mm x 29.5 mm
- Conforme à la norme RoHS
oui
- Poids
40 g
- Type
3SU1050-0AB40-0AA0
22.3 mm
Green
FAUX
1
FAUX
FAUX
Chrome
Other
FAUX
Metal
VRAI
Round
FAUX
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379449 Siemens 3SU10500AB400AA0 3SU1050-0AB40-0AA0 Bouton-poussoir collerette métal, finition brillante, actionneur plat bouton
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379449 Siemens 3SU10500AB400AA0 3SU1050-0AB40-0AA0 Bouton-poussoir collerette métal, finition brillante, actionneur plat bouton
Information
Information 1379449 Siemens 3SU10500AB400AA0 3SU1050-0AB40-0AA0 Bouton-poussoir collerette métal, finition brillante, actionneur plat bouton
Description
Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat momentary contact type Pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
