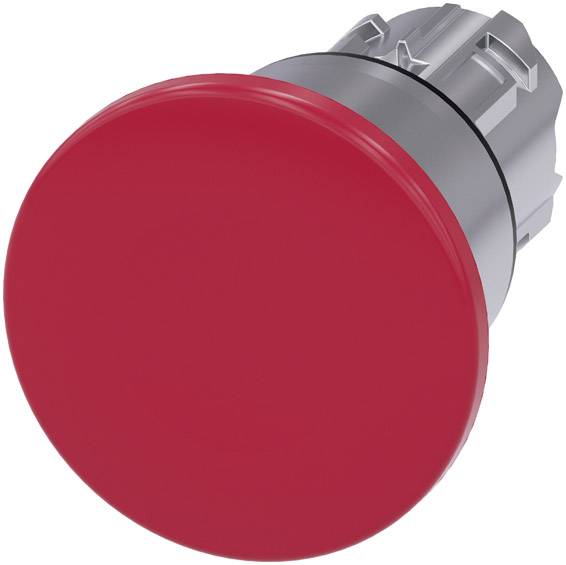

Siemens 3SU10501BA200AA0 3SU1050-1BA20-0AA0 Bouton champignon collerette métal, finition brillante rouge décrochage par
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
34,99 €
3
3% = 1,13 €
33,86 €
5
5% = 1,59 €
33,40 €
10
5% = 1,89 €
33,10 €
25
6% = 2,23 €
32,76 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (34,99 € / unité(s))
34,99 €
HT
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Bouton coup de poing, 22 mm, rond, métal, brillant, rouge, 40 mm, à encliqueter, à déverrouillage par traction
- Type d'emballage
Piece
- Type de produit
Bouton champignon
- Spécificités
collerette métal
finition brillante
- Type d'éclairage
sans
- Couleur
rouge
- Couleur boîtier
rouge
- Ø bouton
40 mm
- Motif d'impression
sans
- Connexion
élément de contact externe
- Mode de décrochage
décrochage par traction
- Forme
rond
- Fonctions
à accrochage
- Ø de montage
22 mm
IP67/IP69
- Température min.
-25 °C
- Température max.
+70 °C
- Diamètre
40 mm
- Contenu
1 pc(s)
- Dim.
(Ø) 40 mm
- Conforme à la norme RoHS
oui
- Poids
0.0600 kg
- Type
3SU1050-1BA20-0AA0
22.3 mm
Red
FAUX
Pull-release
FAUX
40 mm
FAUX
High
Other
40 mm
27.5 mm
IP67/IP69K
Metal
VRAI
Round
FAUX
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379442 Siemens 3SU10501BA200AA0 3SU1050-1BA20-0AA0 Bouton champignon collerette métal, finition brillante rouge décrochage par
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379442 Siemens 3SU10501BA200AA0 3SU1050-1BA20-0AA0 Bouton champignon collerette métal, finition brillante rouge décrochage par
Information
Information 1379442 Siemens 3SU10501BA200AA0 3SU1050-1BA20-0AA0 Bouton champignon collerette métal, finition brillante rouge décrochage par
Description
Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching, Pull-to-unlatch mechanism Mushroom pushbuttons SIRIUS ACT with large actuator for convenient operation using the whole hand.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, several colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, several colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
