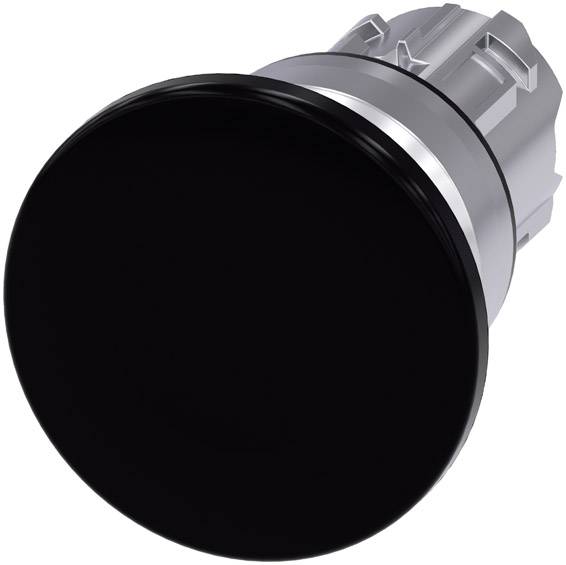

Siemens 3SU10501BD100AA0 3SU1050-1BD10-0AA0 Bouton champignon collerette métal, finition brillante poussoir noir décroch
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
6 pièce(s)
Vente et expédition :
franco de port à partir de 100,00 €.- d'achat auprès de ce fournisseur
Nombre
Total
9,90 €
Livraison intracommunautaire (exonérée de TVA)
9,16 €
Plus que 6 pièce(s) en stock !
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques
- Bouton coup de poing, 22 mm, rond, métal, brillant, noir, 40 mm, à impulsion
- Type de produit
Bouton champignon
- Spécificités
collerette métal
finition brillante
- Type d'éclairage
sans
- Type d'actionnement
poussoir
- Couleur
noir
- Couleur boîtier
noir
- Ø bouton
40 mm
- Motif d'impression
sans
- Connexion
élément de contact externe
- Mode de décrochage
décrochage par rotation
- Forme
rond
- Découpe façade
22 mm mm
- Fonctions
à rappel
- Ø de montage
22 mm
IP66
IP67
IP69K
- Température min.
-25 °C
- Température max.
+70 °C
- Largeur
40 mm
- Hauteur
40 mm
- Diamètre
40 mm
- Contenu
1 pc(s)

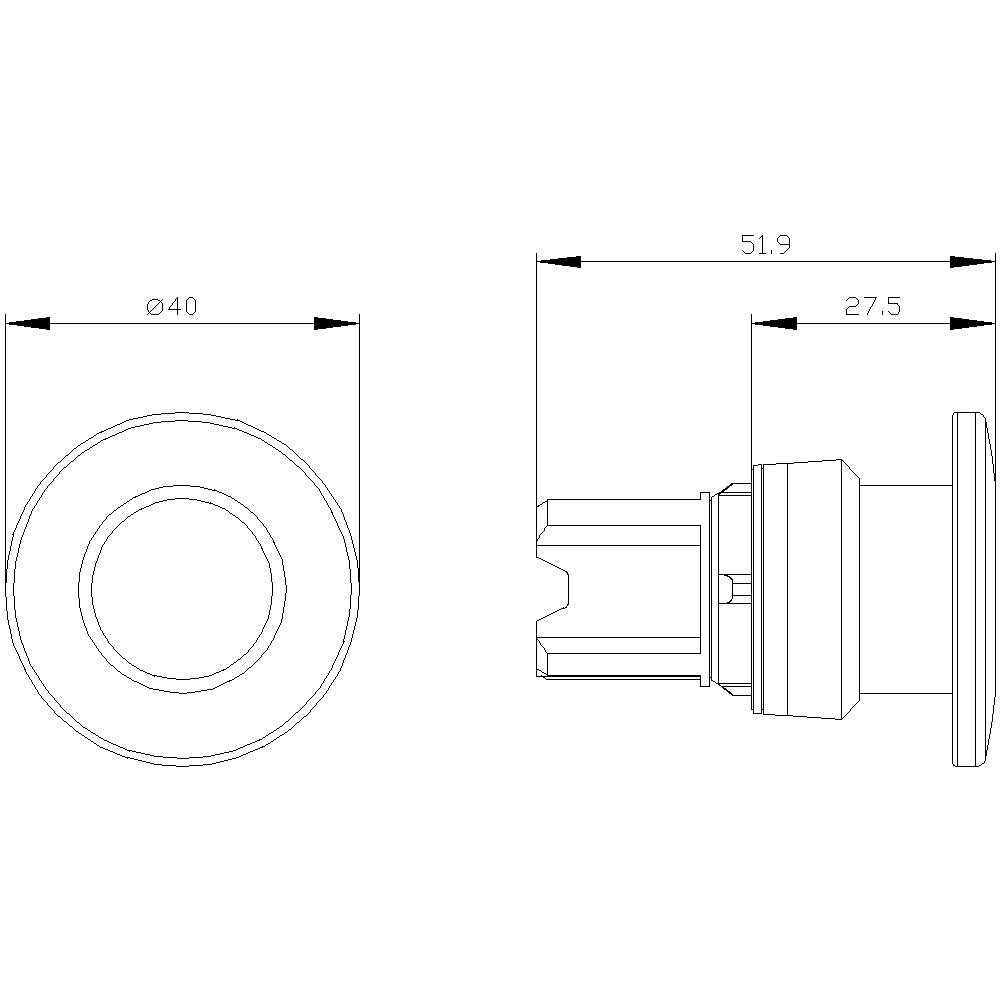

- Dim.
(Ø x H) 40 mm x 40 mm
- Conforme à la norme RoHS
oui
- Poids
0.0506 kg
- Type
3SU1050-1BD10-0AA0
22.3 mm
Black
FAUX
VRAI
40 mm
FAUX
High
Other
FAUX
40 mm
27.5 mm
IP67/IP69K
Metal
VRAI
Round
FAUX
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379443 Siemens 3SU10501BD100AA0 3SU1050-1BD10-0AA0 Bouton champignon collerette métal, finition brillante poussoir noir décroch
Fiche technique 1379443 Siemens 3SU10501BD100AA0 3SU1050-1BD10-0AA0 Bouton champignon collerette métal, finition brillante poussoir noir décroch
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379443 Siemens 3SU10501BD100AA0 3SU1050-1BD10-0AA0 Bouton champignon collerette métal, finition brillante poussoir noir décroch
Information
Information 1379443 Siemens 3SU10501BD100AA0 3SU1050-1BD10-0AA0 Bouton champignon collerette métal, finition brillante poussoir noir décroch
Description
Mushroom pushbutton, 22 mm, round, metal, shiny, black, 40 mm, momentary contact type Mushroom pushbuttons SIRIUS ACT with large actuator for convenient operation using the whole hand.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, several colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, several colors, illuminated/non-illuminated, latching/momentary contact operation, pull-to-unlatch/rotate-to-unlatch mechanism.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
