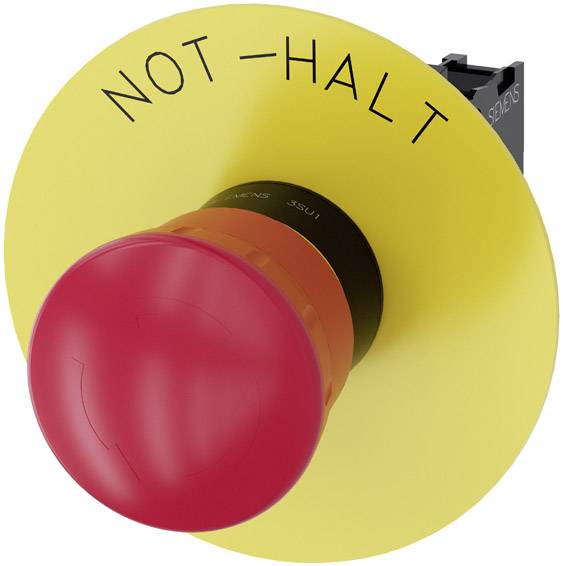

Siemens 3SU11001HB201CH0 3SU1100-1HB20-1CH0 Bouton champignon collerette plastique poussoir en plastique rouge décrochag
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
21 pièce(s)
Vente et expédition :
franco de port à partir de 199,00 €.- d'achat auprès de ce fournisseur
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
28,00 €
2
4% = 1,00 €
27,00 €
3
7% = 2,00 €
26,00 €
5
14% = 4,00 €
24,00 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (28,00 € / unité(s))
28,00 €
Livraison intracommunautaire (exonérée de TVA)
12,90 €
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques
- Bouton-poussoir « arrêt d'urgence », 22 mm, rond, plastique, rouge, 40 mm, à accrochage positif, conf. à DIN EN ISO 13850, déverrouillage par rotation, avec rondelle jaune, inscription : ARRÊT D'URGENCE, avec support, 1NO, connexion vissée
- Type d'emballage
Piece
- Type de produit
Bouton champignon
- Spécificités
collerette plastique
- Type d'éclairage
sans
- Type d'actionnement
poussoir en plastique
- Couleur
rouge
- Couleur boîtier
noir
- Ø bouton
40 mm
- Motif d'impression
NOT-HALT
- Connexion
raccord à vis
- Mode de décrochage
décrochage par rotation
- Forme
rond
- Découpe façade
22 mm
- Fonctions
à accrochage

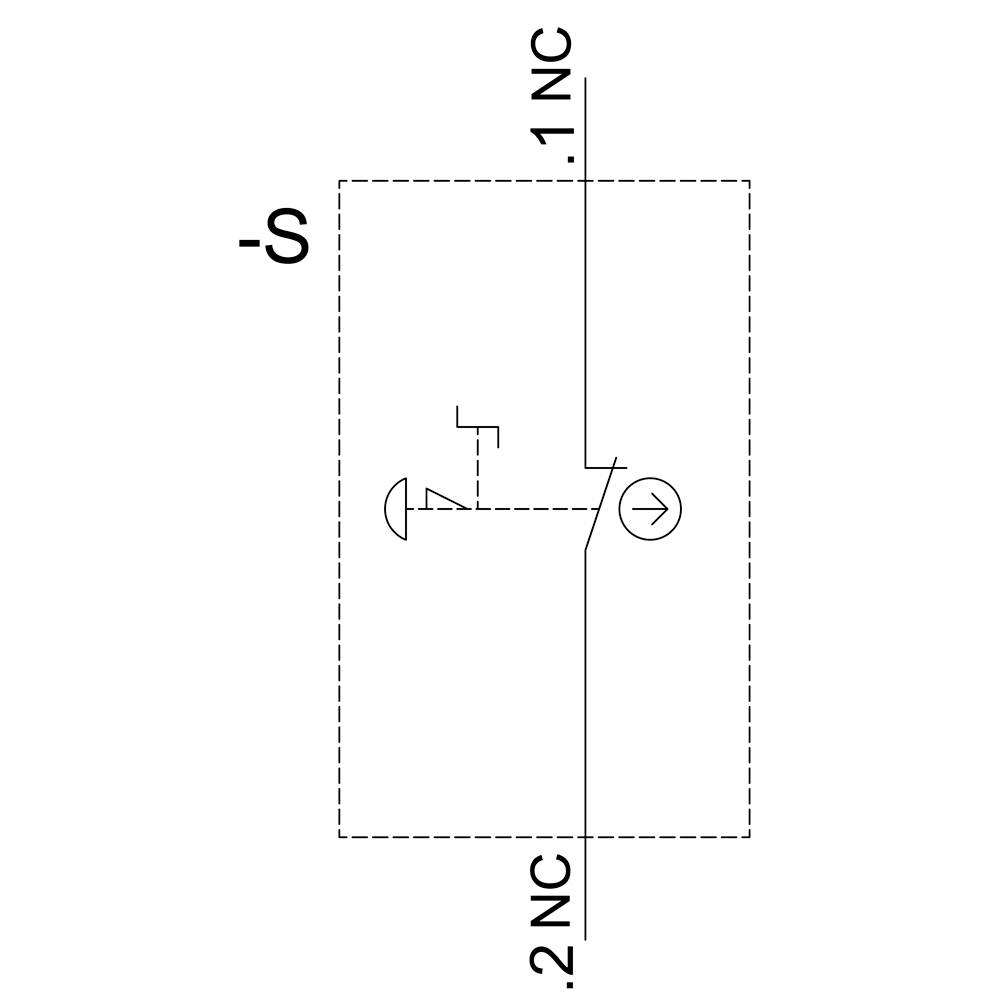

- Type de contact
1 NF (R)
- Durée de vie mécanique
300000
- Ø de montage
22 mm
IP66
IP67
IP69K
- Température min.
-25 °C
- Température max.
+70 °C
- Tension de commutation
500 V
- Position de commutation
1 x On/Off
- Diamètre
40 mm
- Contenu
1 pc(s)
- Dim.
(Ø) 40 mm
- Conforme à la norme RoHS
oui
- Type
3SU1100-1HB20-1CH0
22.3 mm
Red
FAUX
1
FAUX
Mushroom

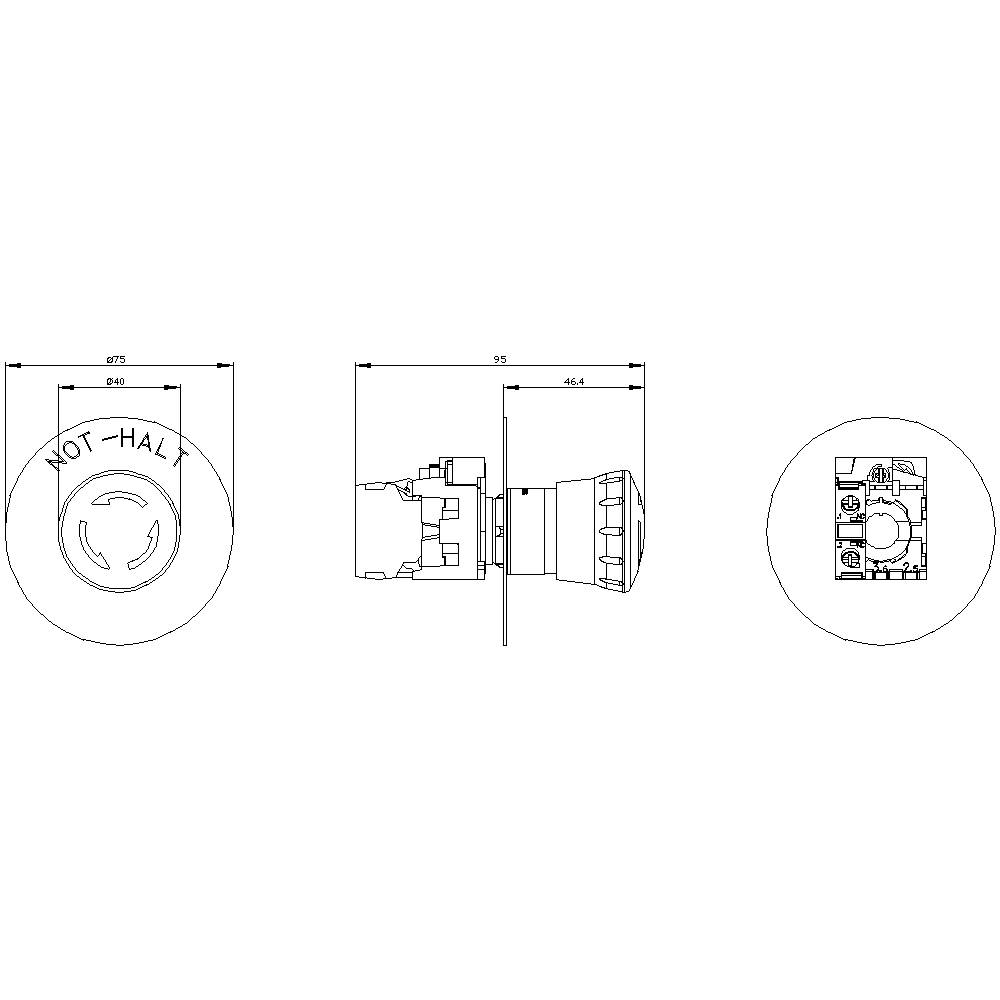

75 mm
46.4 mm
IP67/IP69K
FAUX
FAUX
1
0
0
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379619 Siemens 3SU11001HB201CH0 3SU1100-1HB20-1CH0 Bouton champignon collerette plastique poussoir en plastique rouge décrochag
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379619 Siemens 3SU11001HB201CH0 3SU1100-1HB20-1CH0 Bouton champignon collerette plastique poussoir en plastique rouge décrochag
Information
Information 1379619 Siemens 3SU11001HB201CH0 3SU1100-1HB20-1CH0 Bouton champignon collerette plastique poussoir en plastique rouge décrochag
Description
EMERGENCY STOP mushroom-type actuator, 22 mm, round, plastic, red, 40 mm, positive latching, according to EN ISO 13850, rotate-to-unlatch, with yellow backing plate, inscription: NOT-HALT, with holder, 1 NC, screw terminal EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

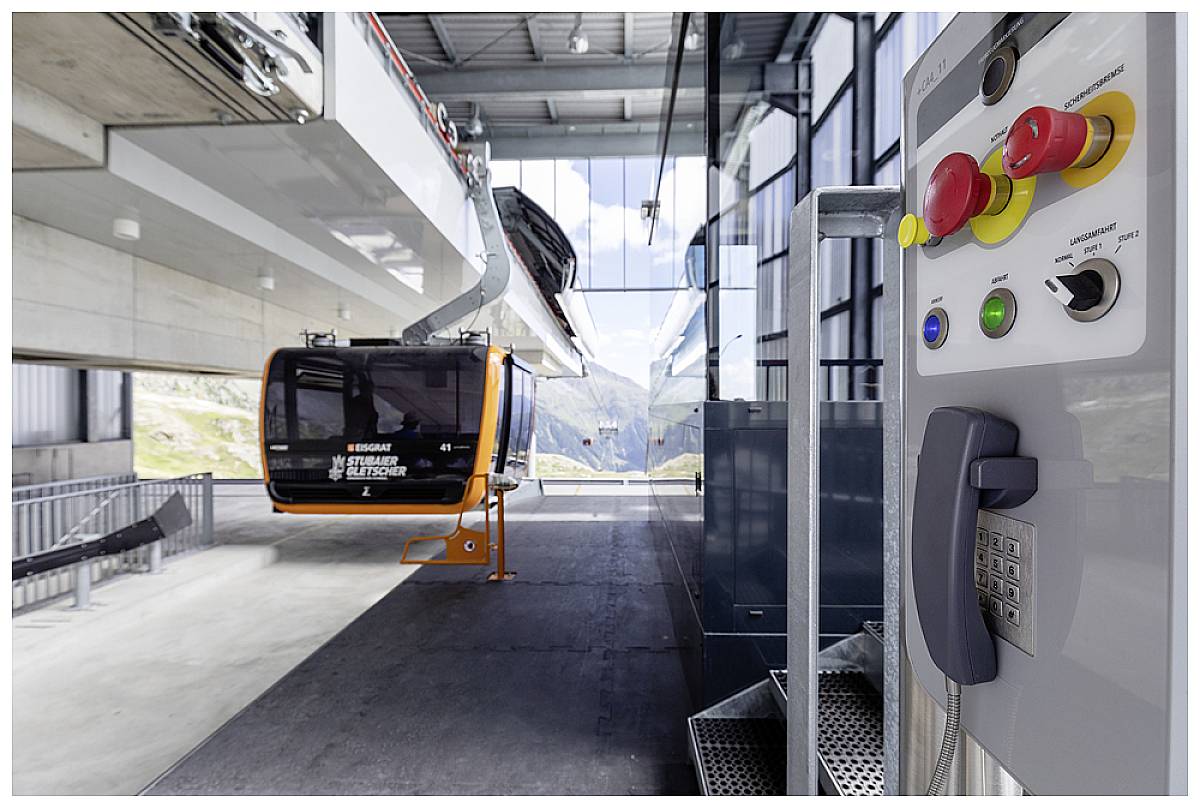

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, illuminated/non illuminated, pull-to-unlatch/rotate-to-unlatch/key-operated release.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: 30/40/60 mm mushroom diameter, illuminated/non illuminated, pull-to-unlatch/rotate-to-unlatch/key-operated release.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Contenu de la livraison
- Support, élément de contact et étiquette sous collerette jaune inclus.
