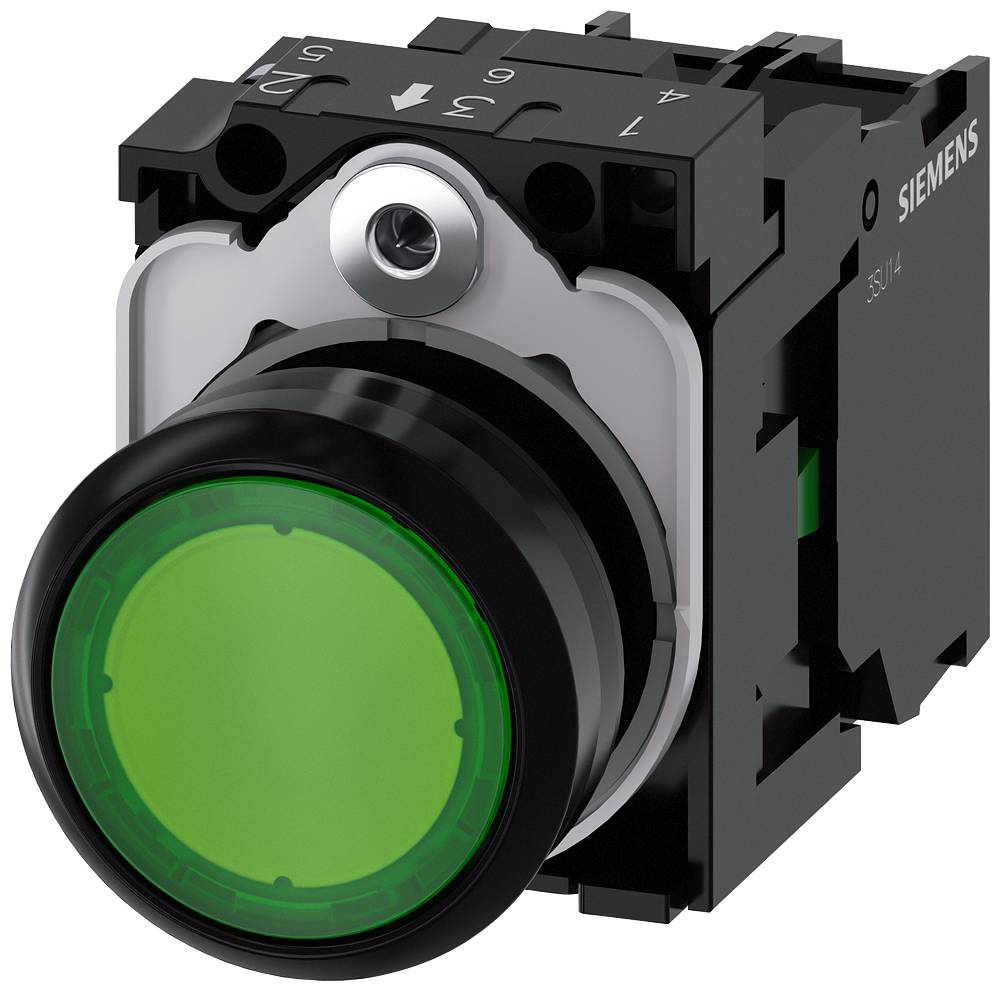

Siemens 3SU11020AB401BA0 3SU1102-0AB40-1BA0 Bouton-poussoir lumineux à rappel collerette plastique, actionneur plat bout
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
36,66 €
3
3% = 1,19 €
35,47 €
5
5% = 1,67 €
34,99 €
10
5% = 1,98 €
34,68 €
25
6% = 2,34 €
34,32 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (36,66 € / unité(s))
36,66 €
HT
Plus que 7 pièce(s) en stock !
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques

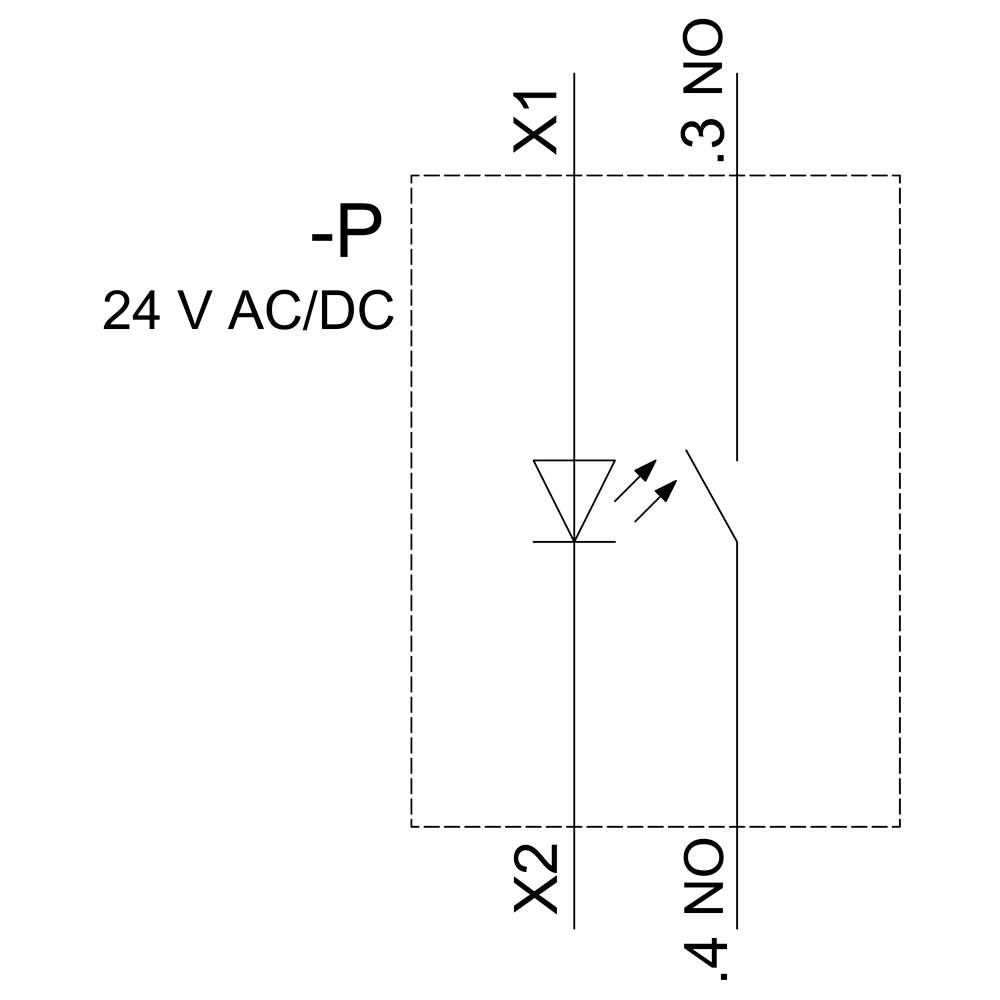

- Bouton-poussoir lumineux, 22 mm, rond, plastique, vert, bouton-poussoir, plat, à impulsion, avec support, 1S, module LED avec LED intégrée AC/DC 24V, connexion par vis
- Type d'emballage
Piece
- Type de produit
Bouton-poussoir lumineux à rappel
- Spécificités
collerette plastique
actionneur plat
- Type d'éclairage
éclairage de surface
- Type
LED
- Type d'actionnement
bouton
- Couleur d'éclairage
vert
- Couleur
vert
- Motif d'impression
sans
- Connexion
raccord à vis
- Forme
rond
- Fonctions
à rappel
- Type de contact
1 NO (T)
- Durée de vie mécanique
3000000
- Durée de vie électrique
10000000
- Ø de montage
22 mm
IP66
IP67
IP69K
- Température min.
-25 °C
- Température max.
+70 °C
- Tension de commutation
24 V/DC
24 V/AC
- Position de commutation
1 x Off/On

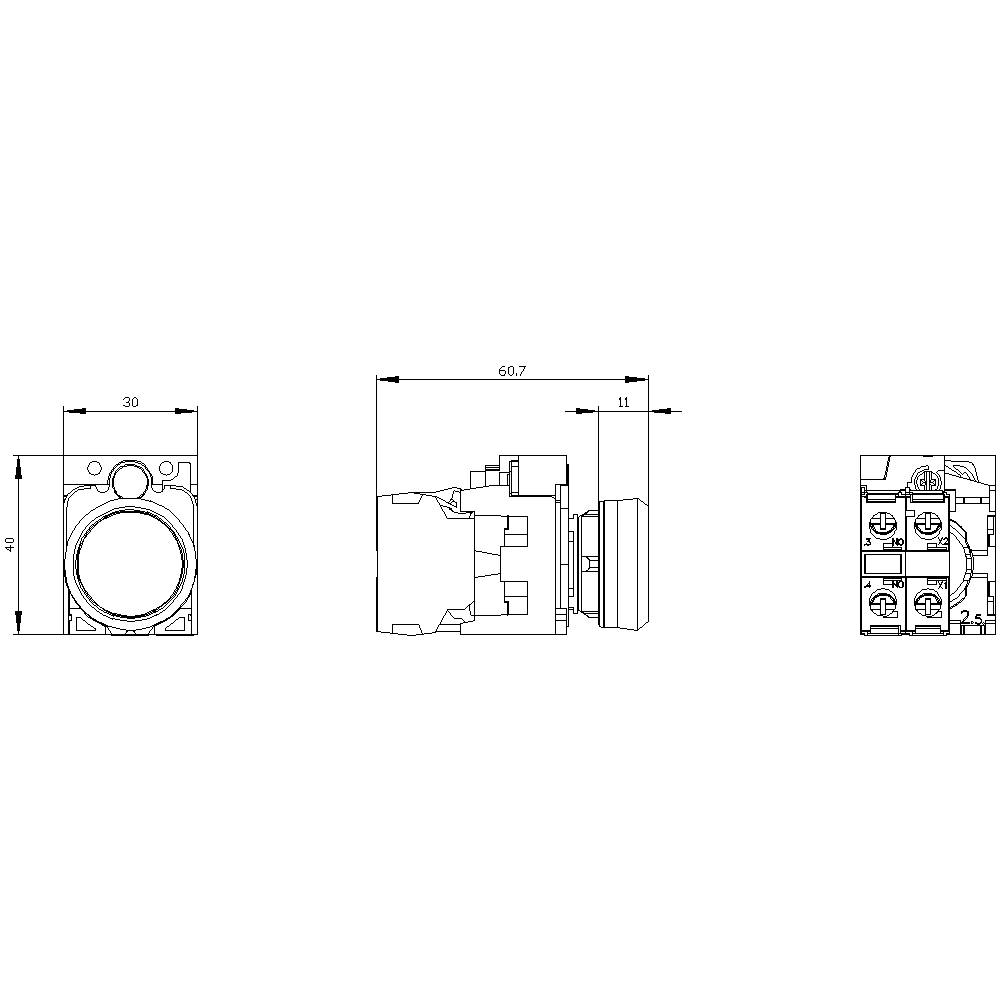

- Largeur
30 mm
- Hauteur
40 mm
- Diamètre
22 mm
- Contenu
1 pc(s)
- Dim.
(Ø x H) 22 mm x 40 mm
- Conforme à la norme RoHS
oui
- Poids
57 g
- Type
3SU1102-0AB40-1BA0
22.3 mm
Green
VRAI
1
VRAI
Flat
Black
Screw connection
29.5 mm
11 mm
IP67/IP69K
Plastic
VRAI
24 V
FAUX
0
1
0
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379622 Siemens 3SU11020AB401BA0 3SU1102-0AB40-1BA0 Bouton-poussoir lumineux à rappel collerette plastique, actionneur plat bout
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379622 Siemens 3SU11020AB401BA0 3SU1102-0AB40-1BA0 Bouton-poussoir lumineux à rappel collerette plastique, actionneur plat bout
Information
Information 1379622 Siemens 3SU11020AB401BA0 3SU1102-0AB40-1BA0 Bouton-poussoir lumineux à rappel collerette plastique, actionneur plat bout
Description
Illuminated pushbutton, 22 mm, round, plastic, green, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 24 V AC/DC, screw terminal Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Contenu de la livraison
- Support et élément de contact inclus.
