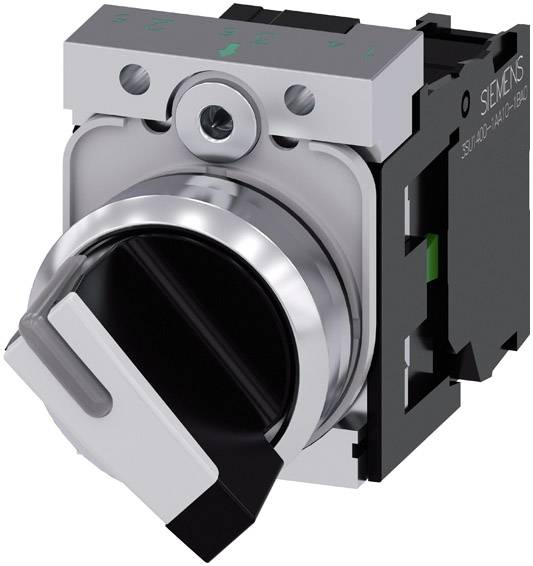

Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 Commutateur rotatif collerette métal, finition brillante noir, blanc 1 x 90
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
17 pièce(s)
Vente et expédition :
franco de port à partir de 100,00 €.- d'achat auprès de ce fournisseur
Nombre
Total
18,60 €
Livraison intracommunautaire (exonérée de TVA)
9,16 €
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques
- Interrupteur à garret, éclairé, 22 mm, rond, métal, brillant, blanc, garrot, court, 2 positions de commutation O-I, à encliqueter, angle de commutation 90°, 10:30h/13:30h, avec support, 1F, raccordement par vis
- Type de produit
Commutateur rotatif
- Spécificités
collerette métal
finition brillante
- Type d'éclairage
éclairage ponctuel
- Type
LED
- Couleur d'éclairage
blanc
- Couleur
noir
blanc
- Motif d'impression
sans
- Connexion
raccord à vis
- Forme
rond
- Fonctions
à accrochage
- Type de contact

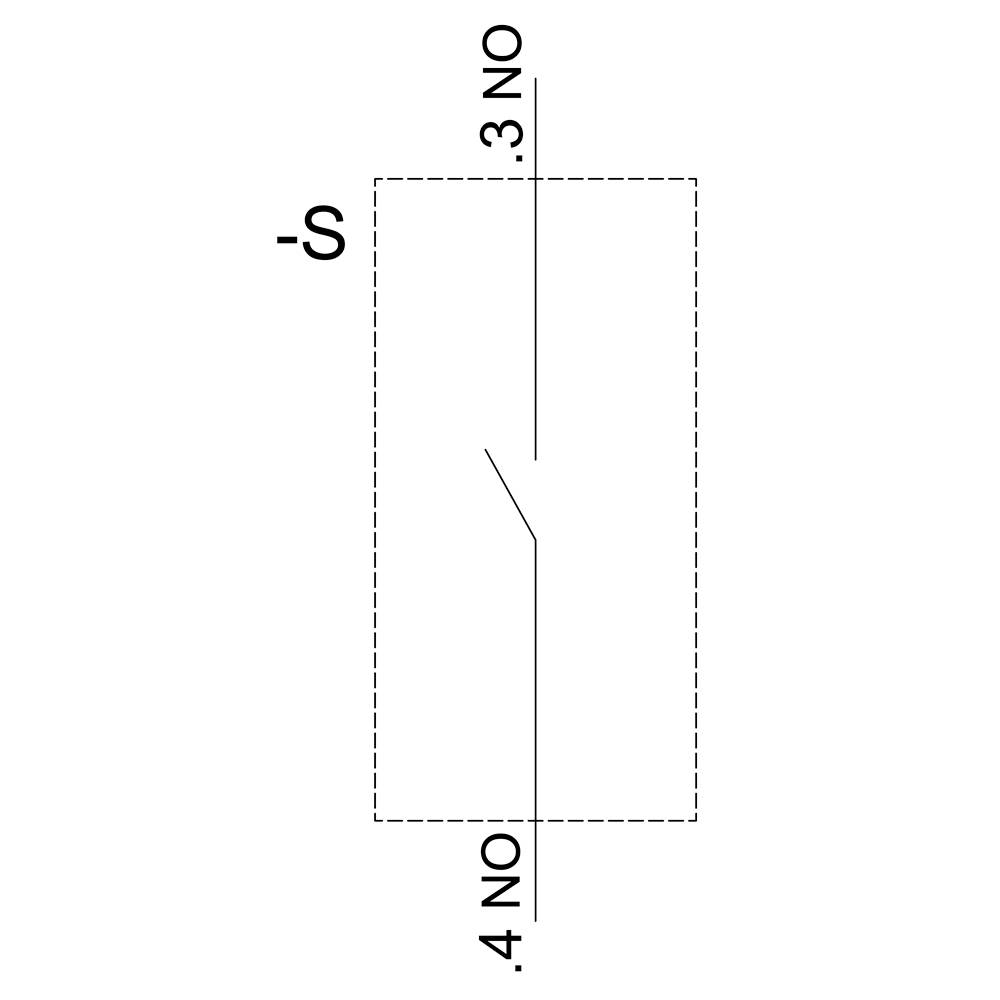

1 NO (T)
- Ø de montage
22 mm
IP69K
- Température min.
-25 °C
- Température max.
+70 °C
- Tension de commutation
500 V
- Angle de commutation
1 x 90 °
- Position de commutation
1 x Off/On
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
- Poids
0.0869 kg
- Type
3SU1150-2BF60-1BA0
- Ampoule incluse
non
22.3 mm
White
2
VRAI
FAUX
Other
32.3 mm
28.8 mm
IP67/IP69K
FAUX
Other
VRAI
Wing knob
FAUX
0
1
0
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 Commutateur rotatif collerette métal, finition brillante noir, blanc 1 x 90
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 Commutateur rotatif collerette métal, finition brillante noir, blanc 1 x 90
Information
Information 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 Commutateur rotatif collerette métal, finition brillante noir, blanc 1 x 90
Description
Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, with holder, 1 NO, screw terminal Selector switches SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Contenu de la livraison
- Support et élément de contact inclus.
