Siemens 3SU1156-6AA60-1AA0 Voyant lumineux finition brillante blanc 230 V/AC 1 pc(s)
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
8 pièce(s)
Vente et expédition :
franco de port à partir de 100,00 €.- d'achat auprès de ce fournisseur
Nombre
Total
18,90 €
Livraison intracommunautaire (exonérée de TVA)
9,16 €
Plus que 8 pièce(s) en stock !
Droit de retour de 14 jours inclus
Vous bénéficiez déjà de la meilleure offre pour cette quantité.
Notre offre
Caractéristiques techniques

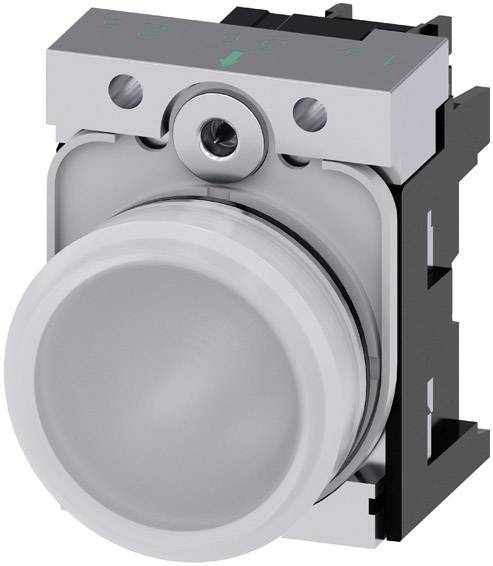

- Indicateur lumineux, 22 mm, rond, métal, brillant, blanc, lentille, lisse, avec support, module LED avec LED intégrée AC 230 V, raccordement par vis
- Type de produit
Voyant lumineux
- Modèle
Métal
- Couleur
blanc
- Tension de fonctionnement
230 V/AC
- Ø de montage
22 mm
non pertinent
- Connexion
raccord à vis
- Poids
0.0627 kg
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
- Spécificités
finition brillante
IP67/IP69
- Type
3SU1156-6AA60-1AA0
- Ampoule incluse
oui
22.3 mm
AC
1
Other
29.5 mm
11.8 mm
IP67/IP69K
VRAI
Other
FAUX
Other
Other
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 1379465 Siemens 3SU1156-6AA60-1AA0 Voyant lumineux finition brillante blanc 230 V/AC 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379465 Siemens 3SU1156-6AA60-1AA0 Voyant lumineux finition brillante blanc 230 V/AC 1 pc(s)
Information
Information 1379465 Siemens 3SU1156-6AA60-1AA0 Voyant lumineux finition brillante blanc 230 V/AC 1 pc(s)
Description
Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
