Siemens 3SE52320KC05 3SE5232-0KC05 Interrupteur de fin de course 240 V/AC 1.5 A poussoir à rappel IP67 1 pc(s)
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
34,16 €
3
3% = 1,11 €
33,05 €
5
5% = 1,56 €
32,60 €
10
5% = 1,85 €
32,31 €
25
6% = 2,18 €
31,98 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (34,16 € / unité(s))
€
Caractéristiques techniques
- Type de produit
Interrupteur de fin de course
- Connexion
raccord à vis
- Type d'actionnement
poussoir
- Tension de commutation
240 V/AC
- Courant de commutation (max.)
1.5 A
- Type de contact
1 NO (T)
2 NF (R)
- Ouverture contact
Contact à action lente
- Fonctions
à rappel
IP67
- Taille du filetage
M20
- Matériau
plastique
- Largeur
31 mm
- Type
3SE5232-0KC05
- Contenu
1 pc(s)
- Dim.
(l x H x P) 31 x 68 x 33 mm
- Conforme à la norme RoHS
oui
- Hauteur
68 mm
- Profondeur
33 mm
- Contact de commutation
Contact à action lente
Slow-action switch
Plastic
VRAI
Other
FAUX
None
None
None
Cuboid
IP65
VRAI
2
Plunger
None
FAUX
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
FAUX
-25-85 °C
2
1
0
Roller cam straight
12
Documents et téléchargements
Fiche technique
Fiche technique 703032 Siemens 3SE52320KC05 3SE5232-0KC05 Interrupteur de fin de course 240 V/AC 1.5 A poussoir à rappel IP67 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 703032 Siemens 3SE52320KC05 3SE5232-0KC05 Interrupteur de fin de course 240 V/AC 1.5 A poussoir à rappel IP67 1 pc(s)
Description
position switch plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts rounded plunger, form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

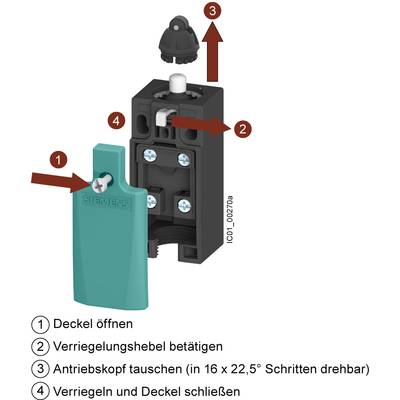

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
