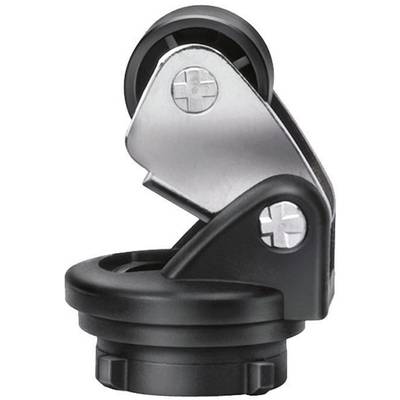

Siemens 3SE50000AE10 3SE5000-0AE10 Tête de commande levier métallique levier à galet noir 1 pc(s)
EAN :
Ref. fabricant :
Code produit :
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
14,16 €
3
6% = 0,78 €
13,38 €
5
8% = 1,10 €
13,06 €
10
9% = 1,30 €
12,86 €
25
11% = 1,54 €
12,62 €
50
13% = 1,80 €
12,36 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (14,16 € / unité(s))
14,16 €
HT
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Tête d'entraînement pour interrupteurs de position 3SE51/52 Levier à galet, forme E, avec levier métallique et galet en plastique 13 mm selon DIN EN 50047
- Type de produit
Tête de commande
- Spécificités
levier métallique
- Type d'éclairage
sans
- Type
LED
- Type d'actionnement
levier à galet
- Couleur
noir
- Couleur boîtier
noir
- Motif d'impression
sans
- Connexion
connecteur mâle M12
- Durée de vie mécanique
1.5E7
- Modèle
Galet en plastique
- Température min.
-25 °C
- Température max.
+85 °C
- Diamètre
13 mm
- Convient pour
Interrupteur de position 3SE51/52
- Contenu
1 pc(s)
- Dim.
(Ø) 13 mm
- Conforme à la norme RoHS
oui
- Poids
15 g
- Type
3SE5000-0AE10
Other
None
None
None
Roller lever
None
Roller cam straight
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 703007 Siemens 3SE50000AE10 3SE5000-0AE10 Tête de commande levier métallique levier à galet noir 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 703007 Siemens 3SE50000AE10 3SE5000-0AE10 Tête de commande levier métallique levier à galet noir 1 pc(s)
Description
Actuator head for position switch 3SE51/52 Roller lever, Form E, with Metal lever and Plastic roller 13 mm according to EN 50047 actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
