Siemens 3SU1401-1BB20-3AA0 Module LED avec élément LED rouge 24 V DC/AC 5 pc(s)
Fiche technique (PDF)
EAN :
Ref. fabricant :
Code produit :
Vente et expédition :
Conrad ElectronicCGV
Total (65,99 € / unité(s))
65,99 €
Prix TTC
dont 0,02 € d’éco-part
Cet article est réservé aux clients professionnels. Merci de vous connecter à votre compte.
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Type d'ampoule : LED
- Composant du produit / diode : oui
- Composant du produit / ampoule : oui
- Résistance aux vibrations : 10... 500 Hz : 5g
- Type de section de conducteur connectable / pour les câbles AWG : 2x (24... 16)
- Type de section de conducteur connectable / à un fil / sans finition de fil : 2x (0,25... 1,5 mm²)
- Type de section de conducteur connectable / à fils fins / avec finition de fil : 2x (0,25... 0,75 mm²)
- Type de section de conducteur connectable / à fils fins / sans finition de fil : 2x (0,25... 1,5 mm²)
- Courant d'appel maximal : 2 A.
- Tension d'isolement : 320 V
- Intensité lumineuse minimale : 450 mcd
- Intensité lumineuse maximale : 1120 mcd
- Degré de pollution : 3
- Type de produit
Module LED
- Spécificités
avec élément LED
- Connexion
raccordement à ressort
- Modèle
avec LED intégrée
- Couleur d'éclairage
rouge
- Tension de commutation
24 V DC/AC
- Courant de commutation (max.)
25 mA
IP20
IP40
- Résistance diélectrique
4 kV
- Température min.
-25 °C
- Température max.
+70 °C
- Largeur
9.8 mm
- Hauteur
36 mm
- Durée de vie électrique
100 000
- Type de montage
fixation frontale
- Contenu
5 pc(s)

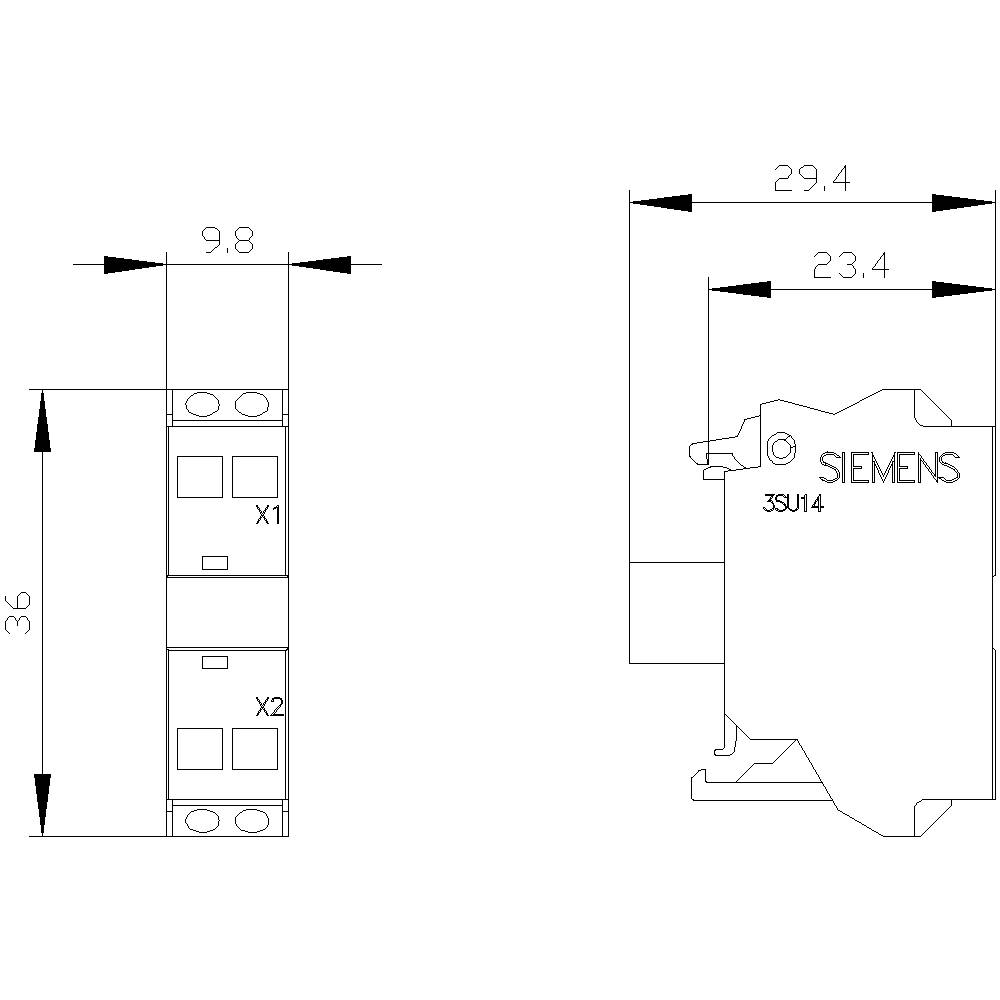

- Dim.
(l x H x P) 9.8 x 36 x 29.4 mm
- Conforme à la norme RoHS
oui
- Profondeur
29.4 mm
- Type
3SU1401-1BB20-3AA0
- Ampoule incluse
oui
None
FAUX
FAUX
VRAI
Red
LED
VRAI
Spring clamp connection
AC/DC
- UKCA
oui
Documents et téléchargements
Fiche technique
Fiche technique 2262245 Siemens 3SU1401-1BB20-3AA0 Module LED avec élément LED rouge 24 V DC/AC 5 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 2262245 Siemens 3SU1401-1BB20-3AA0 Module LED avec élément LED rouge 24 V DC/AC 5 pc(s)
Description
LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for front plate mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

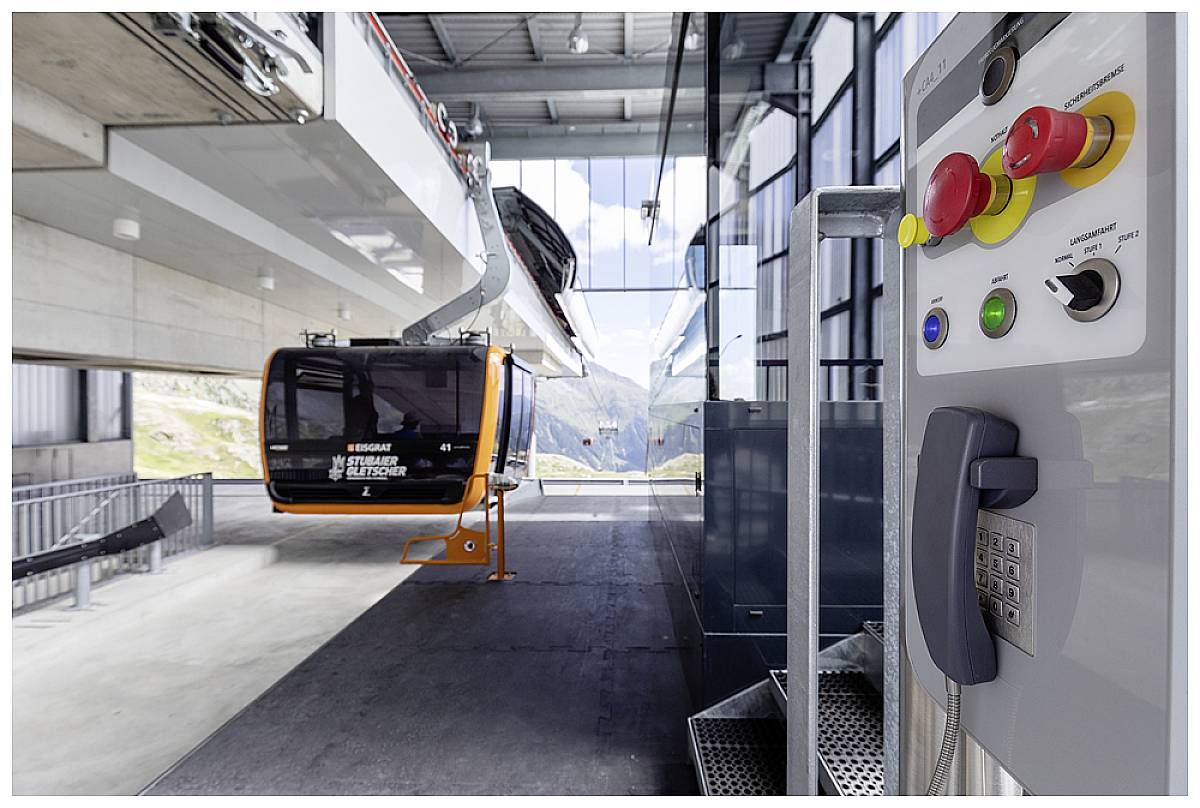

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
