Photo non contractuelle

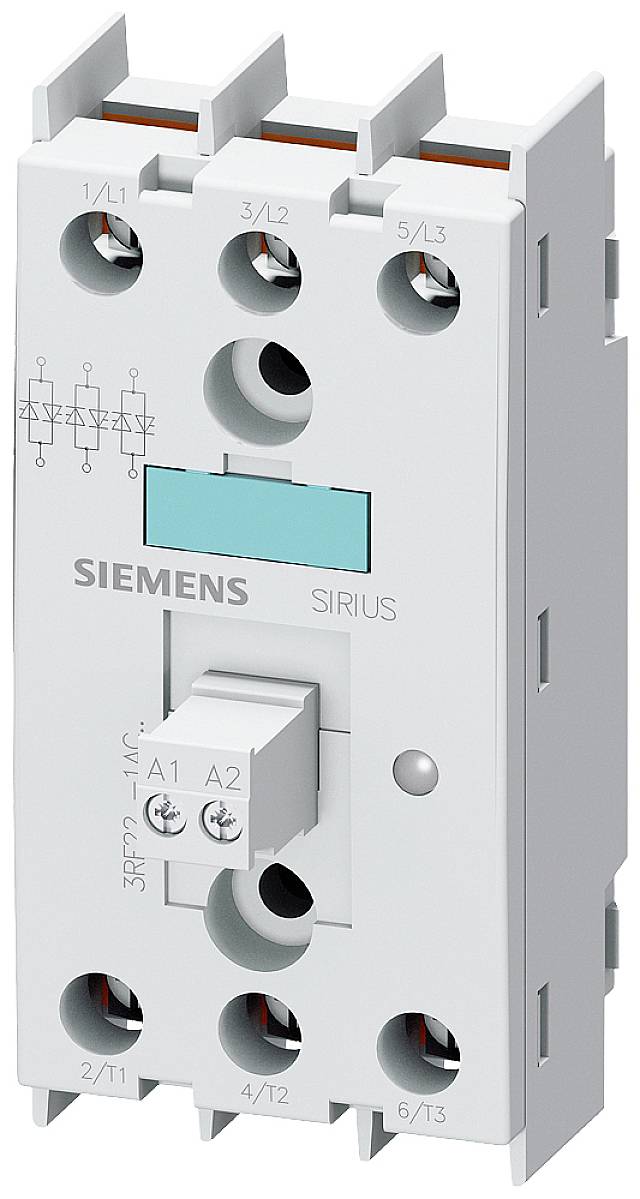

Siemens Relais à semi-conducteurs 3RF22551AC35 55 A Tension de contact (max.): 600 V/AC à commutation au zéro de tension
EAN :
Ref. fabricant :
Code produit :
Type d'emballage
Piece
Type de produit
Relais à semi-conducteurs
Tension de commande (min.)
88 V/AC
Tension de commande (max.)
121 V/AC
Tension de contact (max.)
600 V/AC
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
179,16 €
3
2% = 13,14 €
174,78 €
5
3% = 30,55 €
173,05 €
10
4% = 72,80 €
171,88 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (179,16 € / unité(s))
179,16 €
HT
dont 0,02 € d’éco-part
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Points forts et détails
3 relais à semi-conducteurs monophasée 3RF22
- Commandé par 3 phases
- Ce texte a été traduit par une machine.
Caractéristiques techniques
- Type d'emballage
Piece
- Type de produit
Relais à semi-conducteurs
- Type
3RF2255-1AC35
- Type de commutation
à commutation au zéro de tension
- Connexion
borne à vis
- Tension de commande (min.)
88 V/AC
- Tension de commande (max.)
121 V/AC
- Gamme de tension de commande
88 - 121 V/AC
- Courant de commande (max.)
15 mA
- Courant de choc (max)
600 A
- Tension de contact (min.)
48 V/AC
- Tension de contact (max.)
600 V/AC
- Courant de charge (max.)
55 A
- Tension de sortie minimale
48 V
- Tension de sortie maximale
600 V/AC
- Courant de sortie (max.)
55 A
- Type de contact
3 NO (T)
- Température min.
-25 °C
- Température max.
+60 °C
IP20

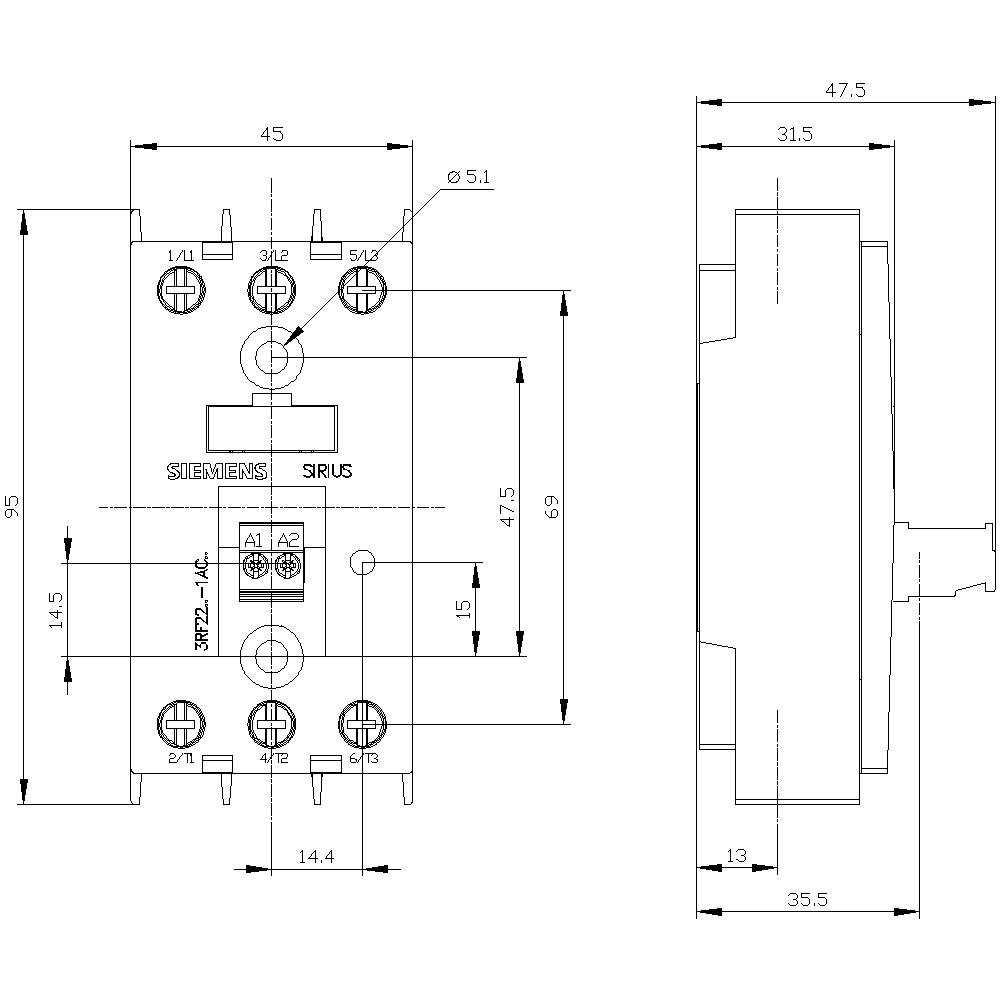

- Largeur
45 mm
- Hauteur
95 mm
- Profondeur
47 mm
- Poids
150 g
- Conforme à la norme RoHS
oui
- Courant continu (max.)
55 A
- Contenu
1 pc(s)
- Tension nominale de commande
110 V/AC
3
VRAI
55 A
AC
50 A
- UKCA
non pertinent
Documents et téléchargements
Fiche technique
Fiche technique 1430935 Siemens Relais à semi-conducteurs 3RF22551AC35 55 A Tension de contact (max.): 600 V/AC à commutation au zéro de tension
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1430935 Siemens Relais à semi-conducteurs 3RF22551AC35 55 A Tension de contact (max.): 600 V/AC à commutation au zéro de tension
Description

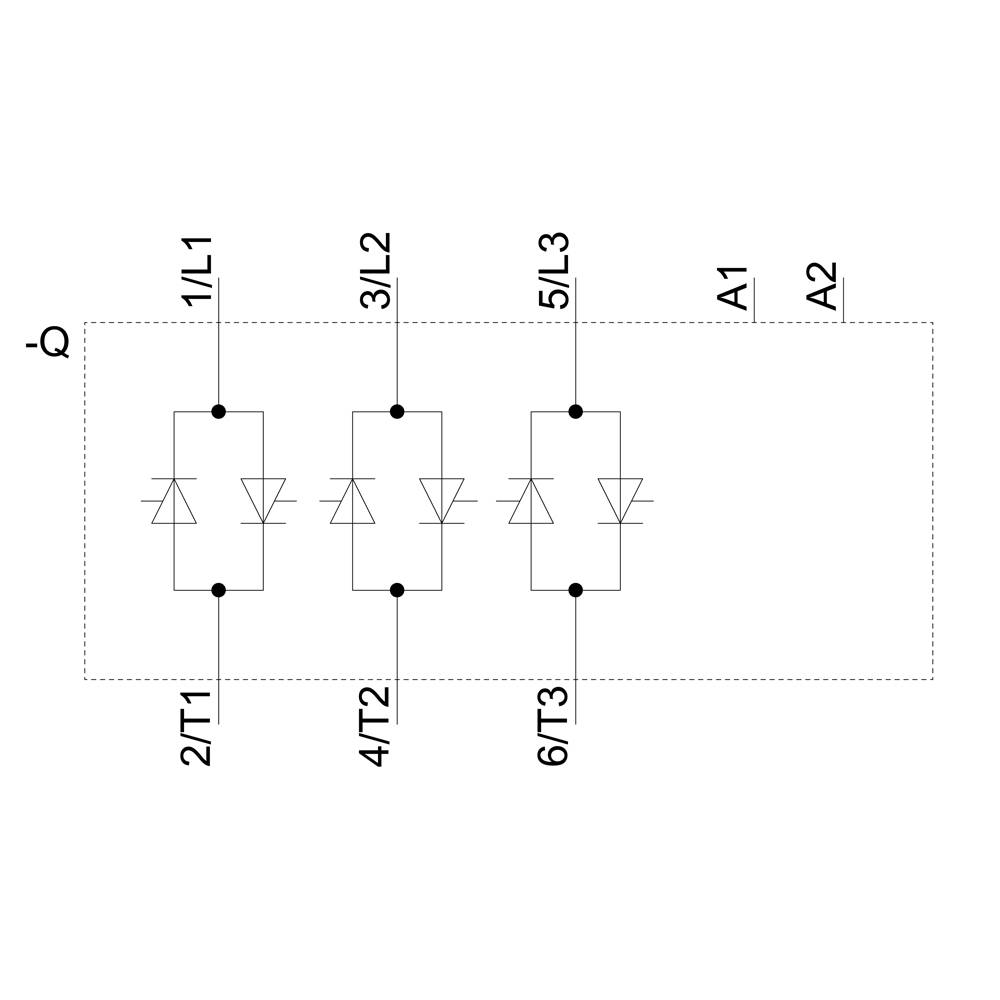

Semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 110 V AC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
