Siemens Relais à semi-conducteurs 3RF21701AA050KN0 70 A Tension de contact (max.): 600 V/AC à commutation au zéro de ten
EAN :
Ref. fabricant :
Code produit :
Type de produit
Relais à semi-conducteurs
Tension de commande (min.)
15 V/DC
Tension de commande (max.)
24 V/DC
Tension de contact (max.)
600 V/AC
Courant de charge (max.)
70 A
Fiche technique (PDF)
Quantité (pièce(s))
Economie
prix de l'emballage (HT)
1
-
68,33 €
3
3% = 1,90 €
66,43 €
5
4% = 2,65 €
65,68 €
10
5% = 3,16 €
65,17 €
25
5% = 3,73 €
64,60 €
Les remises sur volume varient selon les vendeurs
Économiser 0,00 €
Nombre
Total (68,33 € / unité(s))
€
Caractéristiques techniques
- Type de produit
Relais à semi-conducteurs
- Type
3RF2170-1AA05-0KN0
- Type de commutation
à commutation au zéro de tension
- Connexion
borne à vis
- Tension de commande (min.)
15 V/DC
- Tension de commande (max.)
24 V/DC
- Gamme de tension de commande
15 - 24 V/DC
- Courant de commande (max.)
6.5 mA
- Courant de choc (max)
1200 A
- Tension de contact (min.)
48 V/AC
- Tension de contact (max.)
600 V/AC
- Courant de charge (max.)
70 A
- Type de contact
1 NO (T)
- Température min.
-25 °C
- Température max.
+60 °C
IP20

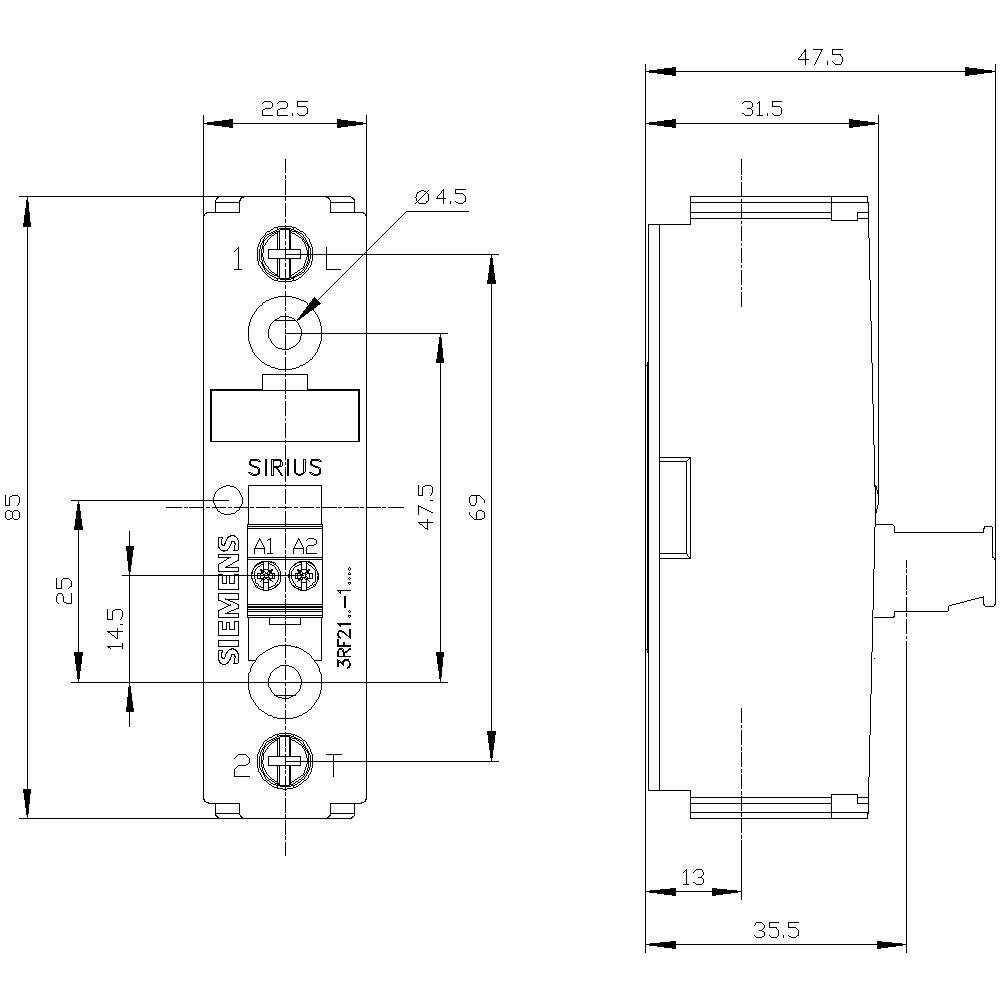

- Largeur
22.5 mm
- Hauteur
85 mm
- Profondeur
48 mm
- Poids
70 g
- Conforme à la norme RoHS
oui
- Contenu
1 pc(s)
1
VRAI
70 A
DC
50 A
Documents et téléchargements
Fiche technique
Fiche technique 1430864 Siemens Relais à semi-conducteurs 3RF21701AA050KN0 70 A Tension de contact (max.): 600 V/AC à commutation au zéro de ten
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1430864 Siemens Relais à semi-conducteurs 3RF21701AA050KN0 70 A Tension de contact (max.): 600 V/AC à commutation au zéro de ten
Description
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 70 A 48-600 V / 24 V DC screw terminal Blocking voltage 1200 V Low power consumption solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.

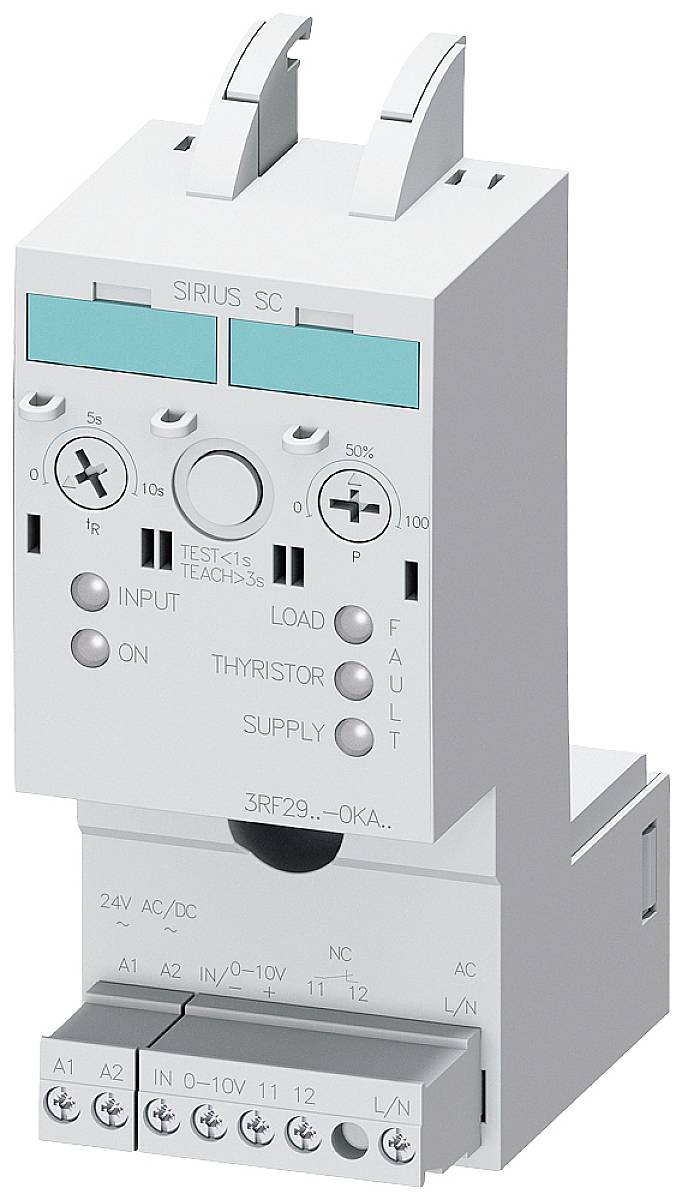

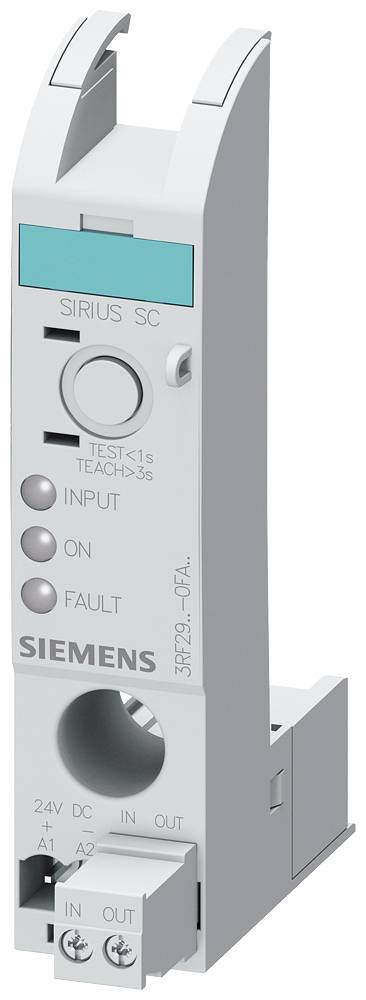

The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
